Points To Note for Installation of Cooling Tower Filler

Analysis of precautions for installing cooling tower filler

In the cooling tower system, the installation quality of cooling tower filler directly affects cooling efficiency and equipment lifespan. Even if high-performance cooling tower fill is selected, improper installation can lead to reduced cooling effect and increased maintenance costs. This article will summarize key considerations for the installation of cooling tower filler from multiple perspectives and provide practical guidance based on different types of cooling tower fills.

Understanding cooling tower fills types is the foundation before installation

Before installation, it is essential to specify the types of cooling tower fills to be used, as different types of fills exhibit variations in structure, material, and installation methods.

1. Film Type Cooling Tower Fill

1）Heat exchange is achieved by forming a water film on the surface

2）The requirement for water quality is relatively high

3）During installation, it is necessary to ensure that the direction of the sheets is consistent and they are arranged neatly

2. Splash Type Cooling Tower Fill

1）Increase heat transfer area through water splash

2）Strong anti-clogging ability

3）Flexible installation, suitable for environments with poor water quality or high suspended solids

Understanding the characteristics of different types of cooling tower fills can aid in formulating a scientific installation plan.

Preparations before installation

1. Check the quality of the filler material

1）Confirm that the cooling tower filler is free from damage, deformation, or dimensional deviation

2）Ensure compliance with design requirements to avoid affecting the cooling effect after installation

2. Clean the interior of the cooling tower

1）Remove residual old packing, dirt, and impurities

2）Ensure the installation surface is flat and clean, providing conditions for the stable installation of the cooling tower fill

Key installation points for cooling tower filler

1. Ensure the correct direction of the filler

Most cooling tower fillers have specific requirements for water flow direction, and the design direction must be followed during installation; otherwise, cooling efficiency will be reduced.

2. Control the compactness of the filler

1）Excessively tight filler: increased air resistance, affecting cooling tower fill performance

2）Too loose filler: prone to displacement or collapse

3）Reasonable tightness can ensure long-term stable operation

3. Support and fixation

1）Use a support frame or tray to ensure the packing is stable

2）Prevent the displacement of packing due to water flow impact or vibration during operation

Installation precautions for different types of cooling tower fills:

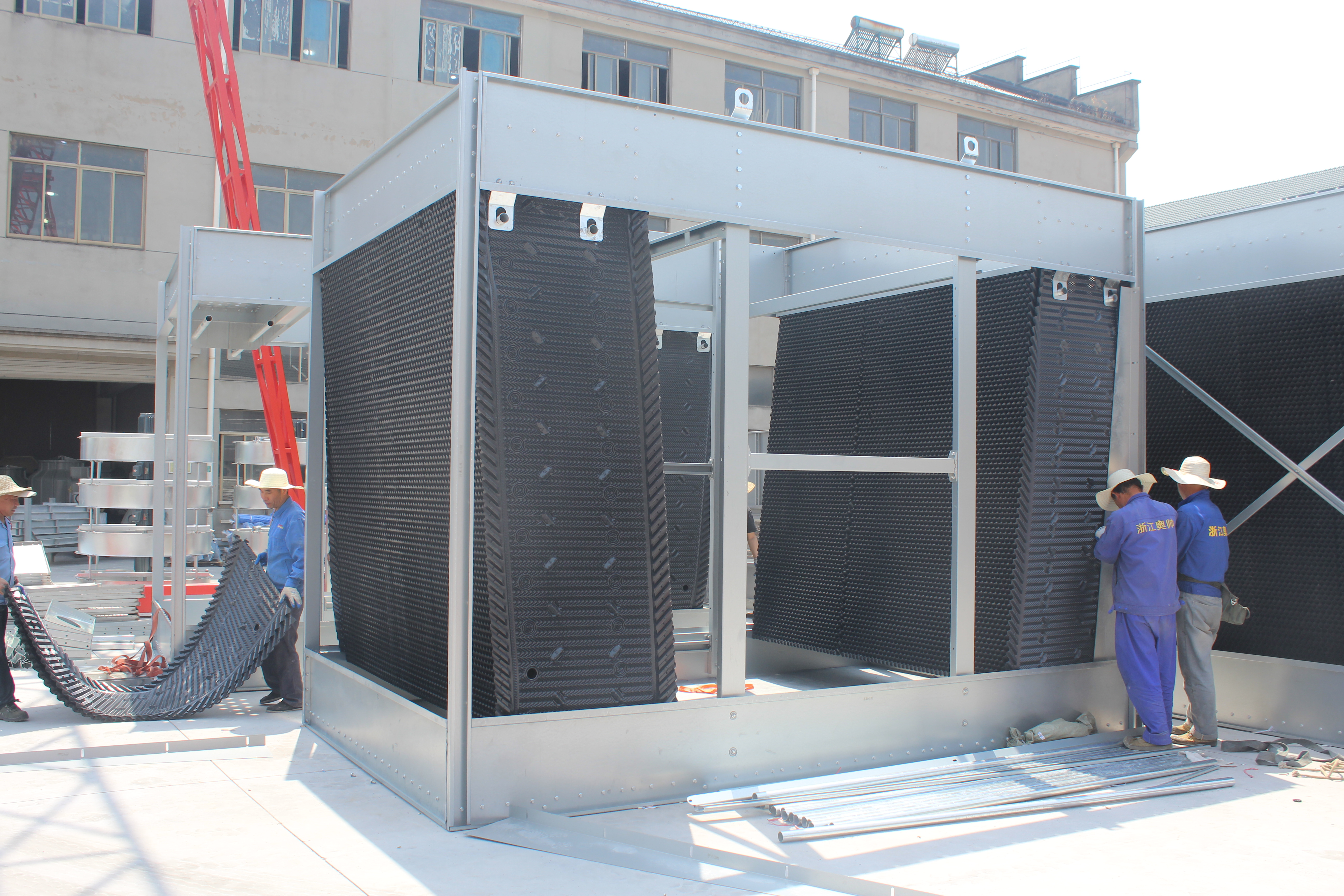

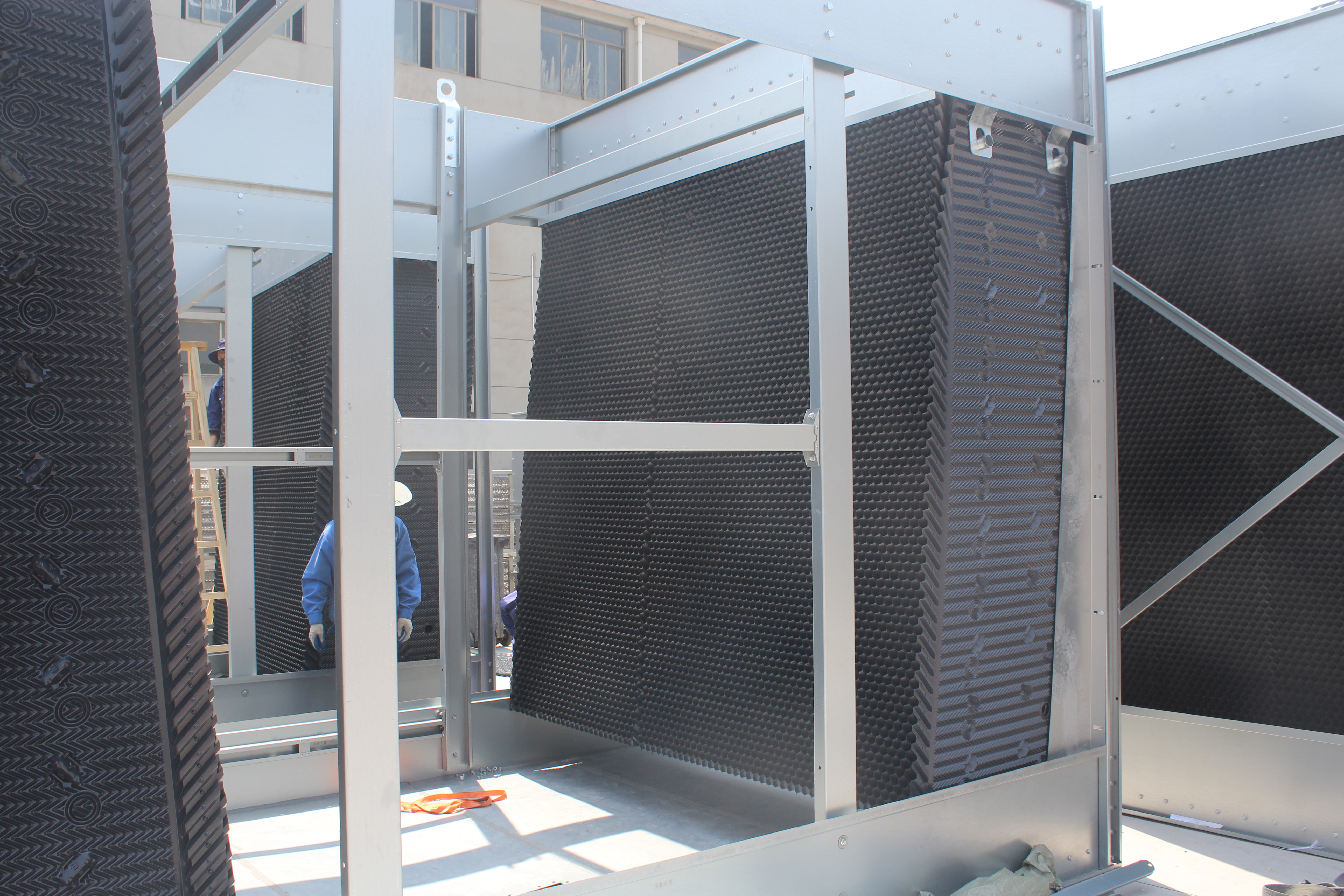

1. Installation of crossflow cooling tower fill

Ensure uniform water distribution to avoid the occurrence of dry areas

Maintain a reasonable spacing between the filler and the water collection tank

The supporting structure is sturdy, preventing it from sinking or tilting

2. Installation of filler material for counter flow cooling tower

The height of the filler meets the design requirements

The airflow channel is unobstructed, ensuring uniform air flow

Strengthen support to avoid long-term decline

Inspection and debugging after installation

1. Comprehensive Inspection

Confirm that the cooling tower filler is not misaligned, tilted, or loose

Check whether there is any blockage in the air duct or whether it affects the water flow distribution

2. Trial operation and adjustment

Observe the uniformity of water distribution and air circulation in the packing material

If any abnormalities are found, adjust the position or support in a timely manner

The importance of maintenance and care

Installation is just the first step, and subsequent maintenance is equally crucial:

1.Regularly clean the cooling tower fill to prevent scaling or microbial adhesion

2.Regularly check the support and fixation status of the packing

3.Replace aged packing materials in a timely manner based on water quality and operational conditions

Scientific installation coupled with standardized maintenance can enable the cooling tower filler to maintain optimal performance over the long term.
