In industrial Cooling systems, Cooling Tower Filler is one of the core components that determine cooling efficiency, energy consumption level and system stability. As one of the world-renowned manufacturers of Cooling towers, the Liangchi Cooling Tower Filler produced by Liang Chi is widely recognized in the market for its efficient heat exchange, durability and reliability, and adaptability to various working conditions.
Introduction To Liangchi Cooling Tower Filler
Cooling tower filler is the core component inside the cooling tower, whose main function is to increase the contact area and contact time between air and water, promote heat exchange between water and air, and thus achieve cooling of the cooling water. It disperses the water flow into small droplets, water films, or water curtains through a special structural design, expanding the contact range with the air while slowing down the water flow velocity, allowing the air to fully remove the heat from the water. High quality cooling tower filler can significantly improve the cooling efficiency of cooling towers, reduce energy consumption, and play a crucial role in industrial cooling, central air conditioning, and other fields.
The Function of Cooling Tower Filler
1. Increase the contact area between water and air
The Cooling Tower Filler uses special corrugations, inclined plates, or honeycomb structures to form a uniform water film or droplet on the surface of the filler, greatly increasing the contact area between water and air, which is the basis for achieving efficient heat dissipation in cooling towers.
2. Extend the contact time between water and air
The filling structure can:
Slow down the water flow rate
Change the water flow path
Make water stay in the tower for a longer period of time
Thus, it allows the air to fully contact with hot water, improving the evaporation and sensible heat exchange efficiency.
3. Improve cooling efficiency and reduce outlet water temperature
High performance Cooling Tower Filler can:
Significantly reduce the outlet temperature of the cooling tower
Improve the 'Approach' performance
Reduce the size of the tower or the number of operating units under the same operating conditions
This is particularly important for industrial cooling and central air conditioning systems.
4. Reduce energy consumption and save operating costs
By improving heat transfer efficiency, Cooling Tower Filler can:
Reduce the operating load of the fan
Reduce the power consumption of the fan
Improve the energy efficiency ratio (COP) of the entire cooling system
Long term operation can significantly reduce energy and maintenance costs.
5. Improve water distribution and prevent short-circuit flow
Fillers help:
Uniform distribution of circulating water
Avoid direct water flow from falling to form a 'short circuit'
Improve the uniformity of gas and water distribution inside the overall cooling tower
This is an important factor in ensuring the stable operation of the cooling tower.
6. Adapt to different working conditions and water quality conditions
Different types of Cooling Tower Fillers are suitable for:
High temperature circulating water
High humidity environment
Water quality containing impurities, prone to scaling, or corrosive
Reasonable selection of packing types can effectively extend the service life of cooling towers.
7. Protect the overall structure of the cooling tower
High quality fillers have good:
structural strength
Anti collapse ability
Aging and corrosion resistance performance
It can reduce the load on other components inside the tower and improve the overall reliability of the cooling tower.
The Core Advantages of Liangchi Cooling Tower Filler
1. Efficient heat transfer performance
Liangchi Cooling Tower Filler adopts a scientific corrugated structure and reasonable spacing design, which enables the circulating water to form a uniform water film on the surface of the filler, significantly improving the heat exchange efficiency between air and water.
2. High quality raw materials
The filling material for Liangchi cooling tower is usually selected as follows:
1）PVC
2）PP (polypropylene)
High temperature resistant and anti-aging modified materials
These materials have good corrosion resistance, moisture resistance, and service life.
3. Stable structure and easy installation
Filler Cooling Tower Liangchi has good overall rigidity and anti collapse ability, suitable for both cross flow and counter flow cooling towers. Its modular design facilitates installation, replacement, and maintenance.
4. Low operating resistance
Reasonable airflow channel design ensures heat transfer efficiency while effectively reducing wind resistance, thereby reducing fan energy consumption and operating noise.

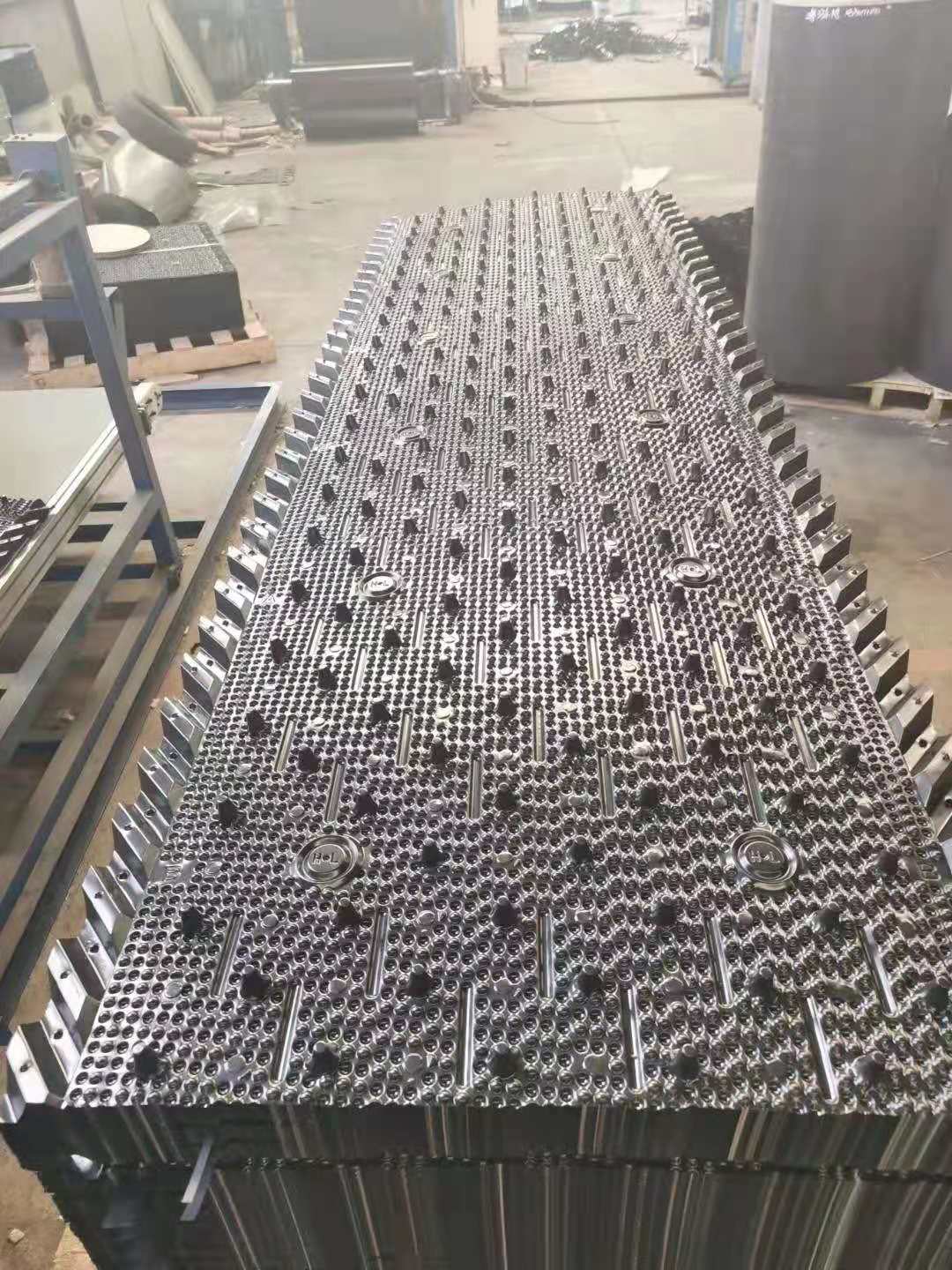

Picture of Replacement of Filler Cooling Tower Liangchi
Application Areas of Filler Cooling Tower Liangchi
Liangchi Cooling Tower Filler is widely used in the following industries:
1. Power industry (thermal power plants, nuclear power auxiliary cooling)
2. Petrochemical and Fine Chemicals
3. Steel and metallurgical industry
4. HVAC Central Air Conditioning System
5. Data centers and industrial refrigeration systems
