Explanation of How Cooling Tower Fan Works

A cooling tower fan works by moving large volumes of air through the cooling tower so the warm water can release heat more efficiently.

Here’s a clear step-by-step explanation of how it works:

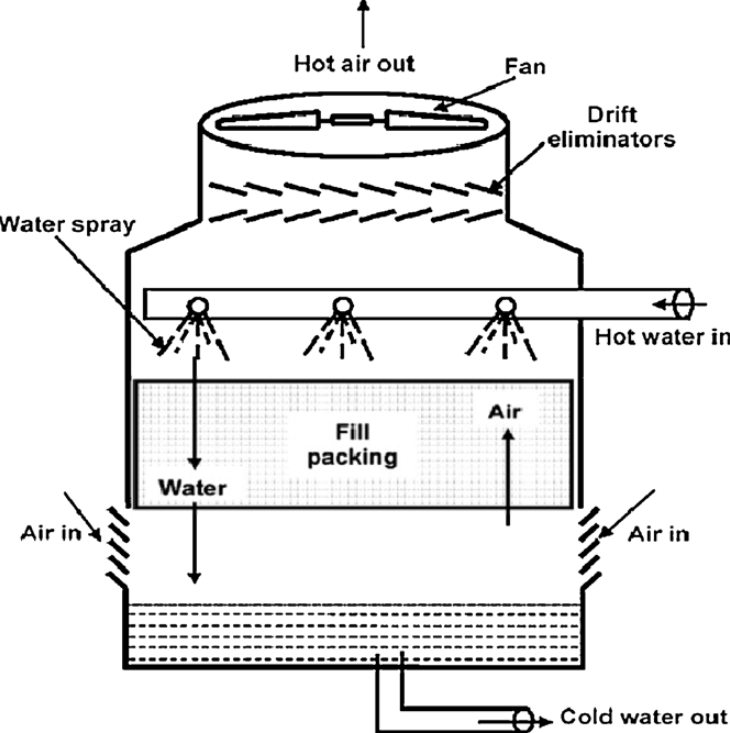

How Cooling Tower Fan Works (Simple Explanation)

1. Warm water enters the cooling tower

Hot water from a chiller, condenser, or industrial process is sprayed down over the fill media.

2. The fan pulls or pushes air through the tower

The fan’s job is to create strong airflow.

There are two main types:

Induced Draft Fan (most common)

* Located at the top of the tower

* Pulls air upward through the fill and out of the tower

* Creates a stable, uniform airflow

* More energy efficient

Forced Draft Fan

* Located at the bottom or side

* Pushes air into the tower

* Used in smaller towers or ducted systems

3. Air mixes with the warm water

As air moves through the falling water:

* Some water evaporates

* Evaporation removes a lot of heat

* Remaining water cools down as it falls

The fan ensures constant, strong airflow to keep this process efficient.

4. Fan speed controls cooling

Many modern towers use a VFD (Variable Frequency Drive) to control fan speed.

* Low speed on cool days

* High speed on hot days

* Saves significant energy

5. Key Fan Components

* FRP or aluminum blades

* Fan hub

* Electric motor

* Gearbox (slow-speed induced draft)

* Drive shaft

* VFD controller (optional)

Each part ensures:

* Smooth, stable airflow

* Low vibration

* High efficiency

Why the Fan Is So Important

The fan can influence up to 70% of a cooling tower’s heat rejection performance.

A stronger or more efficient fan means:

* Colder condenser water

* Better chiller performance

* Lower energy cost

* Longer equipment life
