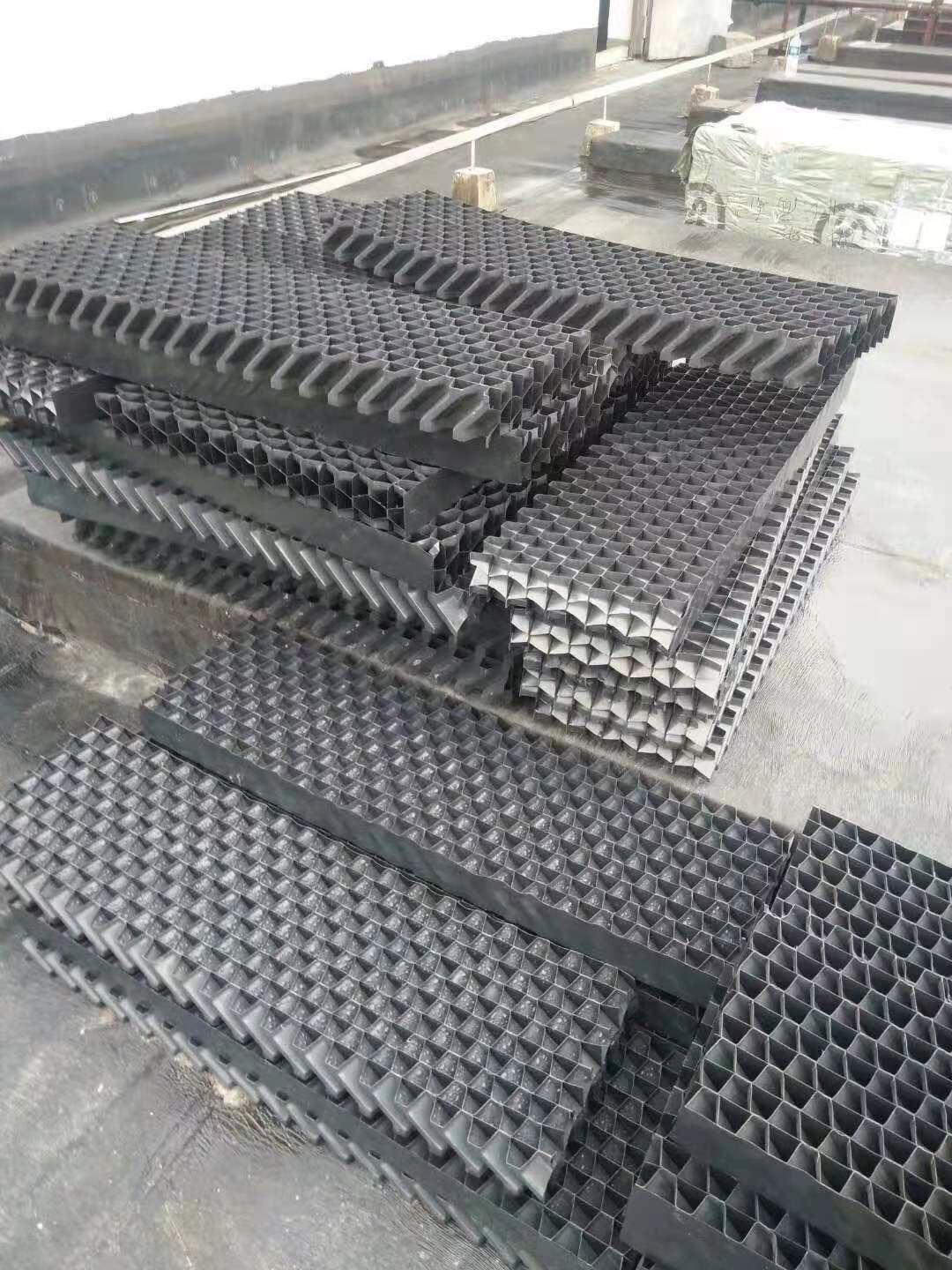

Evapco cooling tower fill replacement is an important maintenance task for industrial and commercial cooling towers. The fill media plays a critical role in increasing the contact area between water and air, allowing heat to transfer more efficiently. When cooling tower fill becomes damaged, clogged, brittle, or heavily scaled, cooling performance can decline significantly.
Replacing worn Evapco cooling tower fill with high-quality replacement fill can restore heat transfer efficiency, improve water distribution, reduce operating problems, and extend the service life of the cooling tower.
This guide explains when to replace cooling tower fill, how the replacement process works, what type of fill to choose, and how to maximize cooling tower performance after installation.
 |  |
Cooling tower fill is the internal heat-transfer media installed inside a cooling tower. Its primary function is to increase the surface area available for water and air contact.
As warm water flows over or through the fill, air passes across the fill surface. A small portion of the water evaporates, removing heat from the remaining water and lowering its temperature.
The performance of a cooling tower depends heavily on the condition and design of its fill media.
High-quality cooling tower fill can provide:
Large heat-transfer surface area
Better water-to-air contact
Improved cooling efficiency
More uniform water distribution
Lower operating temperatures
Reduced energy consumption
Stable cooling tower operation
When the fill deteriorates, these advantages gradually decrease.
Depending on the cooling tower design and application, fill media may include different configurations and materials.
Film fill spreads water into thin films over a large surface area. It is widely used because it provides efficient heat transfer in a relatively compact space.
Splash fill breaks falling water into droplets as it passes through layers of fill bars or grids. It is often suitable for applications where water quality or suspended solids may make film fill more susceptible to blockage.
PVC is one of the most common materials used for cooling tower fill because it offers a good balance of performance, durability, chemical resistance, and cost.
For many replacement applications, PVC cooling tower fill can be manufactured or supplied according to the dimensions and configuration required by the original cooling tower.
Cooling tower fill does not necessarily need to be replaced on a fixed schedule. The actual replacement interval depends on water quality, operating conditions, chemical treatment, temperature, maintenance, and the material of the fill.
Several warning signs indicate that Evapco cooling tower fill replacement may be necessary.
One of the most obvious signs is a gradual increase in cold-water temperature.
If the cooling tower is operating under similar ambient conditions and water flow but cannot achieve its previous outlet-water temperature, degraded fill may be one of the causes.
PVC fill can become brittle after prolonged exposure to heat, ultraviolet radiation, chemicals, and operating stresses.
During inspection, check for:
Cracked fill sheets
Broken sections
Deformed sheets
Collapsed passages
Brittle material
Discoloration
Loose or damaged fill blocks
Severely damaged fill should normally be replaced rather than repaired.
Hard-water minerals can accumulate on the surface of cooling tower fill.
As scale builds up, water and air passages become smaller, reducing effective heat-transfer area and increasing airflow resistance.
Heavy scaling can result in:
Reduced heat transfer
Poor water distribution
Increased pressure drop
Higher fan energy consumption
Increased risk of clogging
If chemical cleaning cannot restore the fill to an acceptable condition, replacement may be the better solution.
Algae, slime, bacteria, and other contaminants can accumulate inside cooling tower fill when water treatment is inadequate.
Severe biological fouling can block air and water passages and significantly reduce cooling performance.
Blocked or damaged fill can restrict airflow through the tower.
If the cooling tower fan needs to work harder to maintain airflow, operating costs may increase.
Replacing old fill can provide several important operational benefits.
New fill media provides clean and properly formed heat-transfer surfaces, allowing water and air to interact more effectively.
This can help restore the cooling tower's thermal performance.
Properly installed fill helps distribute water across the available heat-transfer surface.
Uniform wetting is essential for maximizing the effective surface area of the fill.
When airflow resistance and water distribution are improved, the cooling tower may operate more efficiently.
In some applications, replacing severely fouled fill can help reduce fan operating requirements.
Old and damaged fill can generate loose pieces, obstruct water flow, and create additional maintenance work.
A properly selected replacement can reduce these issues and improve long-term reliability.
Regular inspection and timely cooling tower fill replacement can protect other cooling tower components by maintaining proper airflow and water distribution.
A successful replacement requires more than simply removing the old fill and installing new sheets.
Before ordering replacement fill, inspect the existing installation carefully.
Measure:
Fill length
Fill width
Fill height
Sheet thickness
Flute or corrugation pattern
Block arrangement
Support configuration
The replacement fill must be compatible with the existing support system.
Inspect support beams, brackets, clips, and structural components before installation.
The replacement fill should match the cooling tower's thermal and hydraulic requirements.
Important parameters include:
Water flow rate
Airflow rate
Entering-water temperature
Leaving-water temperature
Design wet-bulb temperature
Fill depth
Fill surface area
Material
Operating temperature
Water quality
The existing fill should be removed carefully to avoid damaging the tower structure.
Before starting work:
Shut down the cooling tower
Isolate electrical equipment
Stop water circulation
Follow site safety procedures
Use appropriate personal protective equipment
Inspect the working area
Prevent debris from entering pumps or piping
After removing the old fill, clean the basin and internal components.
Remove:
Scale
Sludge
Algae
Dirt
Broken fill fragments
Sediment
This step is important because installing new fill into a dirty tower can quickly create new fouling problems.
Install the replacement fill according to the required arrangement.
The fill blocks should be properly aligned and supported.
For film fill, the flute orientation is particularly important because it affects water flow, air movement, and heat transfer.
Incorrect installation can reduce the performance of otherwise high-quality fill media.
After installation, inspect the spray nozzles, distribution pipes, and other water-distribution components.
A new fill cannot perform properly if water distribution is uneven.
Blocked nozzles can create dry areas within the fill.
Uneven wetting reduces the effective heat-transfer area and may cause localized scaling or fouling.
After the installation is complete, restart the cooling tower and monitor its operating conditions.
Check:
Cold-water temperature
Hot-water temperature
Water flow
Fan operation
Airflow
Spray pattern
Vibration
Pressure drop
Motor load
Compare the results with the tower's original design or previous operating data whenever possible.
Selecting the correct replacement fill is one of the most important parts of the project.
Replacement fill should fit the existing tower without excessive modification.
Important dimensions include:
Fill sheet width
Fill sheet length
Fill block height
Thickness
Corrugation pattern
Block density
PVC is commonly selected for many cooling tower applications because it offers good mechanical and chemical resistance.
PVC and polypropylene (PP) are both commonly used materials.
PVC can be a practical choice for standard operating temperatures and many industrial applications. PP may be preferred for certain higher-temperature or chemically demanding applications.
The correct material should always be selected according to actual operating conditions.
Water quality has a major influence on fill life.
If the circulating water contains high levels of:
Suspended solids
Calcium
Magnesium
Silica
Organic contaminants
the fill may foul or scale more quickly.
Applications with relatively clean water can often use high-efficiency film fill.
Applications with heavy suspended solids may require a fill design with greater resistance to clogging.
The cost of Evapco cooling tower fill replacement depends on several factors.
The total replacement cost may include:
Replacement fill media
Transportation
Removal of old fill
Cleaning
Installation labor
Structural repairs
Water-distribution repairs
Inspection and testing
If the fill has only minor localized damage, cleaning or limited repairs may sometimes be possible.
However, when a large percentage of the fill is cracked, collapsed, scaled, or permanently deformed, complete replacement is usually a more practical long-term solution.
Replacing fill is an investment, so proper maintenance is essential after installation.
A suitable water-treatment program helps control:
Scale
Corrosion
Biological growth
Suspended solids
Regular inspections allow operators to identify early signs of deterioration.
Check for:
Scaling
Fouling
Cracking
Deformation
Biological growth
Blockage
Fill displacement
Proper water distribution is essential for film fill performance.
Clean or replace clogged nozzles when necessary.
Avoid operating the cooling tower outside the fill manufacturer's recommended temperature, chemical, and hydraulic limits.

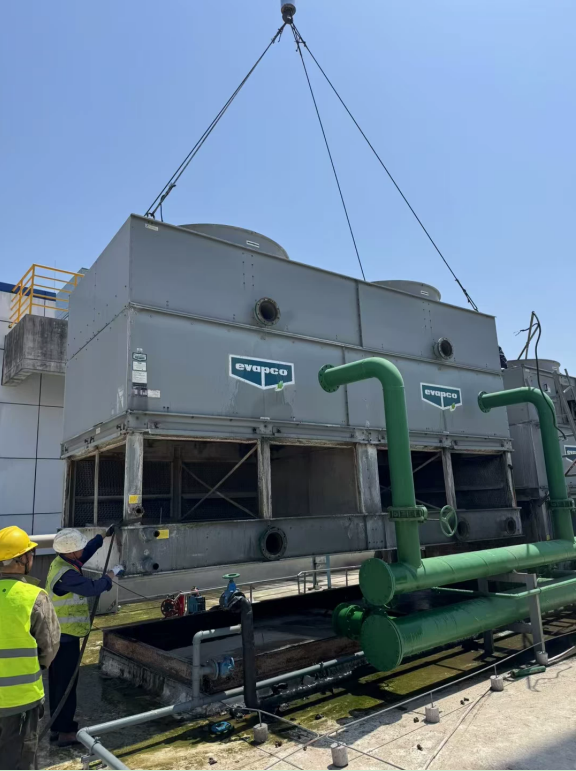

Replacing fill can be a cost-effective alternative to replacing an entire cooling tower when the tower structure and major components remain in good condition.
Fill replacement may be appropriate when:
The tower structure is still sound
Fans are operational
Motors remain serviceable
Water distribution components can be reused
The tower casing is in good condition
Cooling performance has declined mainly because of fill deterioration
A complete cooling tower refurbishment may be more appropriate if the tower has severe structural damage or multiple major components have reached the end of their service life.
Avoiding installation mistakes is just as important as selecting quality fill.
Even a high-quality fill product may perform poorly if its dimensions and configuration are not compatible with the tower.
Film fill must be installed according to the specified flute orientation.
Incorrect orientation can negatively affect water and airflow.
Replacing fill without inspecting spray nozzles and distribution piping can leave the original cooling problem unresolved.
Damaged or weak supports can cause new fill blocks to shift or collapse.
The cheapest fill is not necessarily the most economical option.
A better purchasing decision considers:
Thermal performance
Material quality
Service life
Chemical resistance
Fouling resistance
Manufacturing consistency
Replacement compatibility
An experienced supplier can help identify the correct replacement fill based on the tower's dimensions and operating conditions.
A qualified manufacturer can assist with:
Fill selection
Dimensional confirmation
Material selection
Fill pattern selection
Quantity calculation
Installation guidance
Replacement recommendations
For some projects, standard fill dimensions may not be sufficient.
Custom-manufactured PVC fills for cooling towers can be produced according to the required sheet dimensions, thickness, configuration, and block size.
There is no universal replacement interval. Fill life depends on water quality, operating temperature, chemical treatment, fouling, UV exposure, and maintenance practices. Regular inspection is more reliable than replacing fill based only on a fixed number of years.
Yes, replacement fill can be supplied by qualified third-party manufacturers, provided the fill is properly matched to the tower's dimensions, thermal requirements, water quality, and installation configuration.
PVC is widely used for many cooling tower applications because of its balance of cost, performance, and durability. PP may be more suitable for certain high-temperature applications. The best material depends on the operating conditions.
Light fouling and some deposits may be removable through appropriate cleaning. However, cracked, brittle, collapsed, severely scaled, or permanently deformed fill generally requires replacement.
Yes. If degraded fill is the main cause of poor heat transfer, replacing it with properly selected and correctly installed fill can restore cooling performance and improve water-to-air contact.
Evapco cooling tower fill replacement is an effective way to restore cooling tower performance when existing fill has become damaged, fouled, scaled, or inefficient. The right replacement fill can improve heat transfer, water distribution, airflow performance, and overall operating reliability.
For the best results, replacement projects should consider more than the fill material alone. Correct dimensions, fill configuration, flute orientation, water distribution, operating conditions, and installation quality all affect the final performance.
If you are looking for Evapco cooling tower fill replacement, high-quality PVC cooling tower fill, or custom cooling tower fill media, working with an experienced manufacturer can help ensure that the replacement fill matches your cooling tower and operating requirements.
