Complete guide for BAC cooling tower fill replacement
In the cooling tower system, the Cooling Tower Fill is the core component that determines the heat transfer efficiency. With long-term operation, the fill will gradually fail due to dirt, scale, aging, and exposure to wind and sun, resulting in decreased cooling efficiency, increased energy consumption, and even endangering the normal operation of the equipment. Therefore, timely Cooling Tower Fill Replacement is crucial.
Why is BAC cooling tower fill replacement crucial?
The BAC cooling tower has a precise structure, and the design of its fill directly affects the heat dissipation efficiency and operating costs. After the filler becomes brittle, clogged, or aged, it can cause the following problems:
1.The cooling efficiency has significantly decreased
2.Uneven distribution of water flow and insufficient heat exchange
3.The load of the circulating pump increases, resulting in an increase in energy consumption
4.The system temperature is difficult to control, affecting the process or air conditioning performance
5.Increasing the risk of Legionella and water pollution
Therefore, regular BAC Cooling Tower Fill Replacement is a key step in maintaining efficient operation of the cooling tower.
The main types of cooling tower fill and BAC recommended configurations
Choosing the correct type of filler is crucial when performing Cooling Tower Fill Replacement. Common cooling tower fillers include:

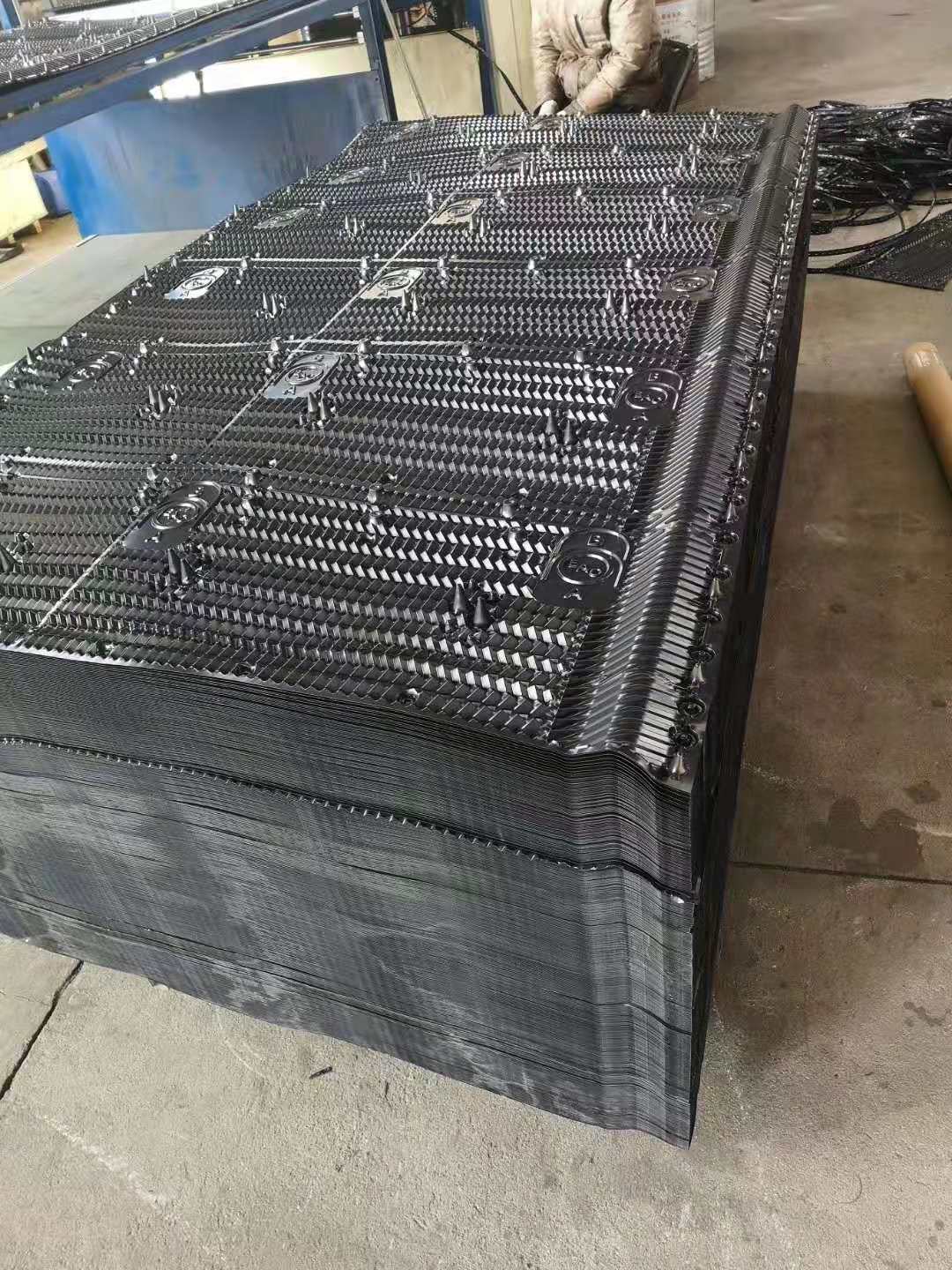

1. Film Fill
1）BAC cooling tower is most commonly used
2）Improving evaporation efficiency through large-area thin films
3）Suitable for clean to medium water quality
2. Splash Fill
1）More suitable for scenarios with poor water quality and solid particles
2）Strong anti blocking performance
3）Suitable for industrial grade cooling towers
3. PVC/PP Material Fill
PVC: High cost performance, corrosion-resistant
PP: More durable for use in high-temperature areas
For BAC cooling tower models, it is recommended to prioritize using original matching or equivalent alternative models to ensure maximum compatibility and heat dissipation efficiency.
When is cooling tower fill replacement required?
The following situations indicate that you need to arrange for the replacement of cooling tower fill as soon as possible:
1.Fill deformation, brittleness or damage
2.Severe blockage and uneven water flow
3.The surface area of the filling material is thick with accumulated water, dirt or sludge
4.The outlet temperature rises and the system does not meet the standard
5.The operating noise increases or the air volume decreases
Once the above situation occurs, timely Cooling Tower Fill Replacement can avoid greater losses.
Steps for BAC cooling tower fill replacement
To ensure the replacement effect, professional procedures should be followed:
1. Shutdown and safety preparation
1）Power outage and water supply shutdown
2）Clean up the internal space to ensure a safe construction environment
2. Remove old fill
1）Be careful when removing old and brittle fillers
2）Avoid damaging the PVC support structure and water distribution board
3. Clean the tower body
1）Remove silt, scale, and sediment
2）Clean the bottom basin and pipelines
3）Sterilization and disinfection to reduce the risk of Legionella bacteria

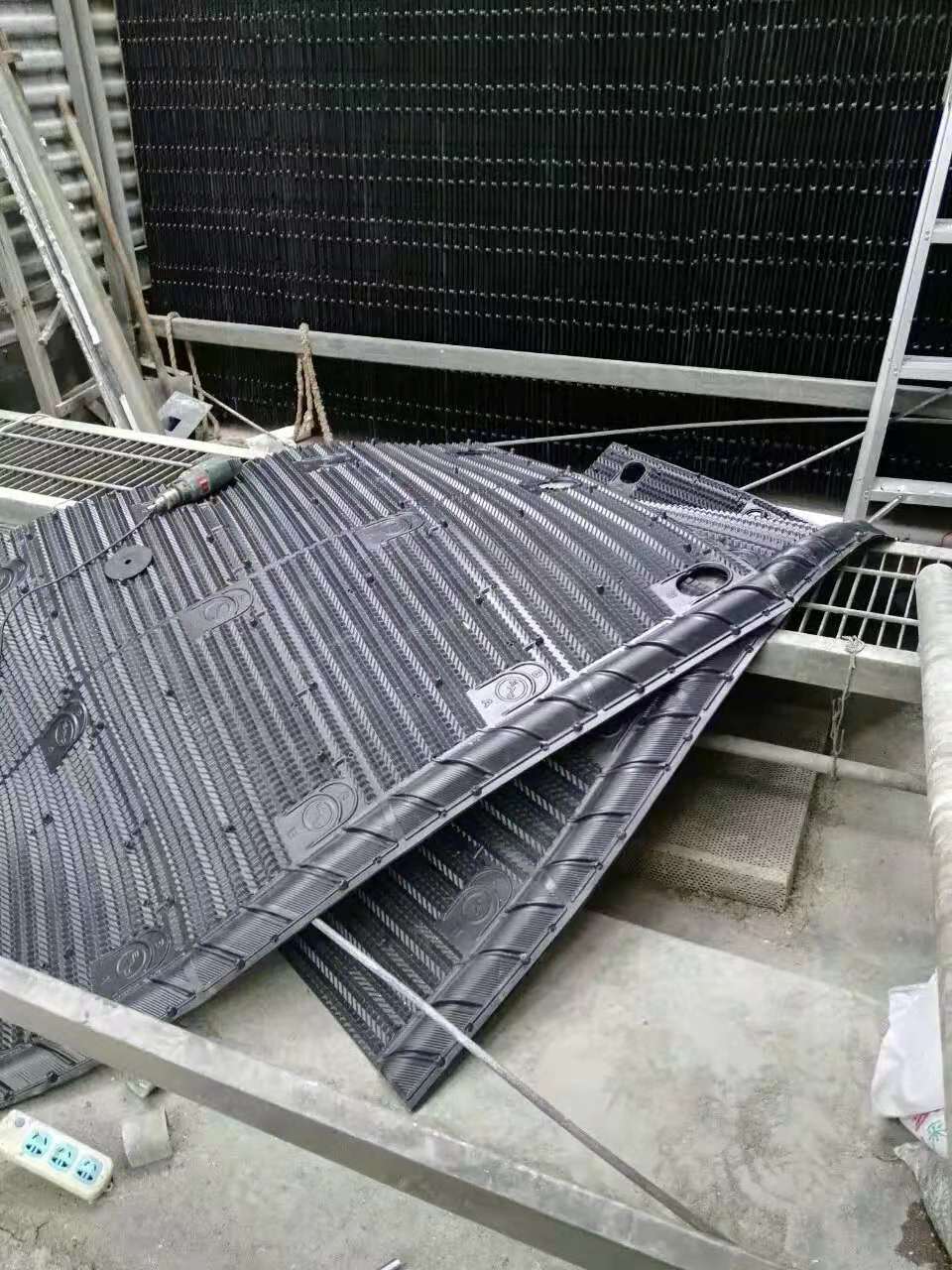

4. Install a new Cooling Tower Fill
1）Strictly cut according to BAC standard size
2）Install correctly according to the direction of airflow
3）Ensure that the fill is stacked tightly and without gaps
5. Debugging and acceptance
1）Check the distribution of water flow
2）Ensure the normal operation of the fan
3）Test cooling efficiency and record data
Key points for choosing high-quality cooling tower fill
When purchasing or replacing cooling tower packing, quality can be judged from the following aspects:
1.Is the material resistant to ultraviolet rays and high temperatures
2.Does the corrosion resistance and flame retardancy meet industry standards
3.Is it fully compatible with the BAC cooling tower model
4.Structural strength and water flow distribution efficiency
5.Does the manufacturer provide installation guidance and after-sales service
