Cooling tower fill is one of the most important components inside a cooling tower because it provides the surface area required for effective heat and mass transfer between circulating water and air. When fill becomes damaged, scaled, clogged, or structurally degraded, cooling performance can decline significantly.

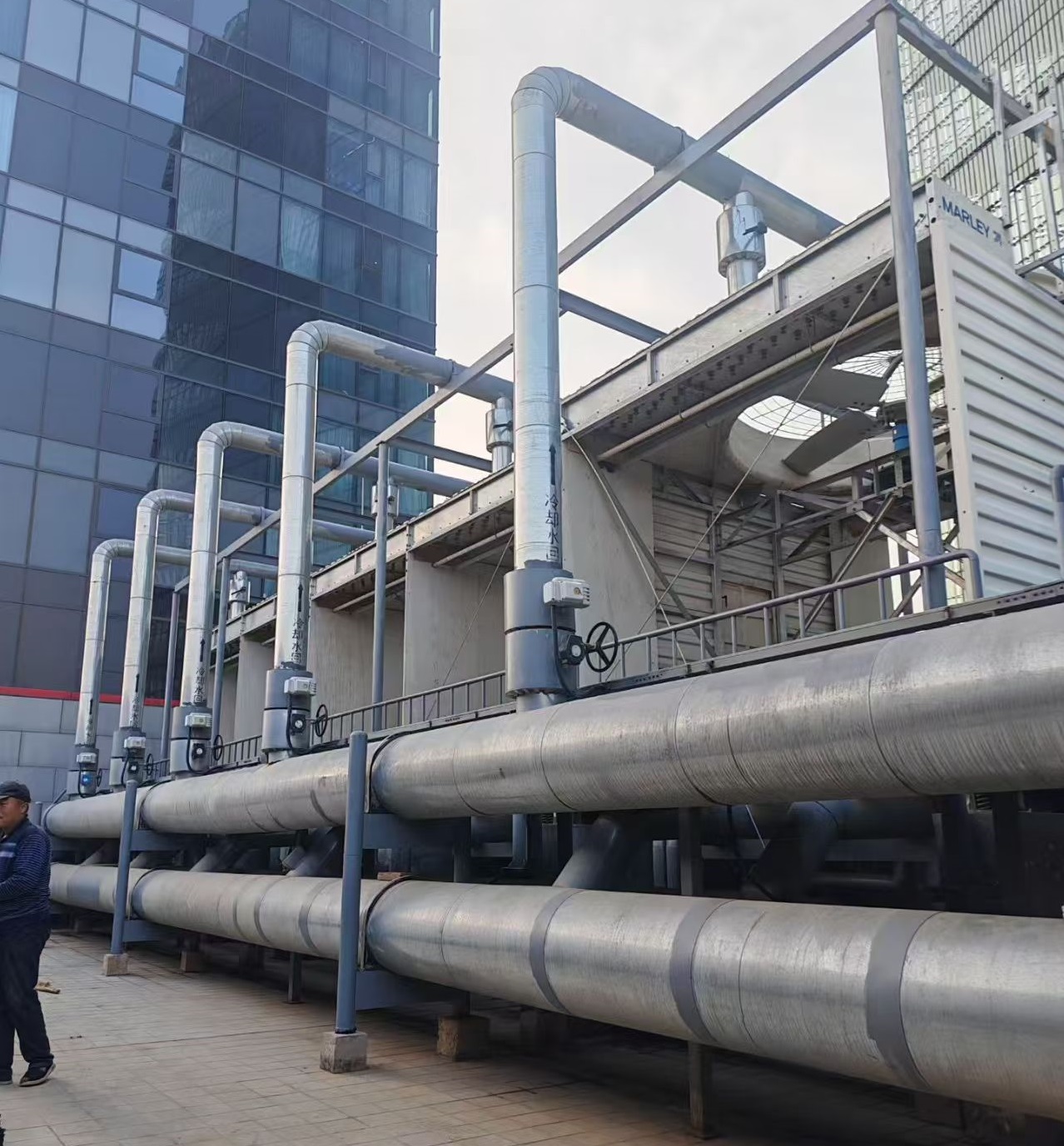

For industrial facilities operating Marley cooling towers in Indonesia, selecting the right replacement fill is therefore an important part of cooling tower maintenance. Indonesia's tropical climate, high humidity, industrial water conditions, and demanding process-cooling applications make proper fill selection especially important.
This guide introduces the Top 5 Marley Cooling Tower Fill Replacement Suppliers in Indonesia and explains the key factors Indonesian buyers should consider when purchasing replacement fill, including material, dimensions, water quality, temperature, thermal performance, price, and installation.
Note: The “Top 5” list below is a practical sourcing guide, not an official ranking. Buyers should confirm current product availability, Marley tower compatibility, local service capability, and project references directly with suppliers.
Cooling tower fill, also called cooling tower packing or heat-transfer media, is installed inside a cooling tower to increase the contact area between air and water.
As hot circulating water flows over the fill, the fill spreads the water into thin films or droplets. Air moving through the tower removes heat from the water through sensible and evaporative heat transfer.
For Marley cooling towers, the correct fill design depends on factors such as:
Cooling tower model
Crossflow or counterflow configuration
Water flow rate
Airflow
Hot-water temperature
Cold-water temperature
Water quality
Suspended solids
Chemical treatment
Required thermal performance
Common replacement options include PVC film fill, PP film fill, splash fill, and customized Marley-compatible fill modules.
Power Tower Cooling Technology (Shaoxing) Co.,Ltd is an aftermarket sourcing option for Marley-compatible cooling tower fill replacement and other cooling tower components.
For older Marley cooling towers, customers may not always need to purchase every replacement component directly from the OEM. A specialized aftermarket supplier can manufacture compatible fill according to drawings, samples, dimensions, or existing tower specifications.
Depending on the project, replacement fill can be produced in materials such as:
PVC
PP
Other application-specific plastics
Available designs can include:
Crossflow film fill
Counterflow film fill
Splash fill
Customized fill modules
Replacement fill sheets
For Indonesian cooling tower maintenance projects, customized manufacturing can be useful when the original fill:
Is discontinued
Is difficult to source
Has unusual dimensions
Requires a large quantity
Needs replacement during a plant shutdown
Customers should provide the tower model, fill dimensions, photographs, and operating conditions so the supplier can verify compatibility.
Potential benefits include:
Competitive pricing
Custom dimensions
Flexible order quantities
Replacement for older towers
OEM-compatible designs
International shipping
Access to other cooling tower spare parts
For cost-sensitive industrial projects, it is worth comparing both OEM and aftermarket solutions.
SPX Cooling Technologies is the original manufacturer associated with the Marley cooling tower brand and should be one of the first sourcing options for facilities requiring genuine Marley replacement components.
For Indonesian plants operating Marley equipment, an OEM route can provide an important advantage: access to equipment-specific engineering information.
Depending on the tower model and application, OEM support can help identify:
Original fill configuration
Compatible replacement fill
Fill support arrangement
Water distribution components
Spray nozzles
Drift eliminators
Tower-specific replacement parts
OEM replacement is particularly attractive for critical cooling towers where maintaining the original engineering design is a priority.
It can be suitable for:
Power plants
Petrochemical plants
Chemical factories
Large manufacturing facilities
Refineries
District cooling systems
Large HVAC installations
Indonesian buyers should provide the Marley tower model and serial number when requesting a quotation.
Brentwood Industries is an established manufacturer of cooling tower heat-transfer media and plastic components.
Its cooling tower product portfolio includes film-fill and splash-fill technologies designed for different cooling tower applications.
For a Marley fill replacement project, Brentwood can be considered when an alternative fill solution is technically appropriate.
A suitable replacement fill should be evaluated according to:
Thermal performance
Water loading
Airflow
Pressure drop
Fouling resistance
Operating temperature
Material compatibility
Rather than selecting a replacement simply because its dimensions appear similar, engineering performance should also be considered.
Brentwood-type fill solutions can be evaluated for cooling towers serving:
Industrial plants
Manufacturing facilities
Power generation
HVAC systems
Process cooling
Chemical processing
Munters is a global company specializing in climate control, air treatment, and heat-transfer technologies.
Its expertise in industrial heat and mass transfer makes it another potential supplier to evaluate when selecting cooling tower media.
For Marley cooling tower owners, the important point is not simply the supplier name but whether the proposed fill can meet the tower's actual thermal and mechanical requirements.
Indonesian customers should discuss:
Cooling tower type
Fill geometry
Water distribution
Operating temperature
Water chemistry
Fouling conditions
Required cooling capacity
A technically suitable alternative fill may be appropriate when the original Marley fill is difficult to obtain or when a plant is evaluating a tower refurbishment.
The fifth sourcing category is local Indonesian cooling tower maintenance and engineering companies.
Local contractors can be valuable when the project requires more than supplying fill material.
A cooling tower refurbishment project may include:
Tower inspection
Existing fill removal
Internal cleaning
Fill support inspection
Nozzle inspection
Water distribution inspection
New fill installation
Drift eliminator inspection
Fan and drive inspection
Final performance testing
Indonesian service providers can potentially offer:
Local labor
Faster site response
Installation services
Shutdown planning
Maintenance support
Inspection services
Local logistics
When choosing a local contractor, ask for references involving Marley/SPX cooling towers or comparable industrial cooling tower equipment.
Different applications require different types of fill.
PVC film fill is one of the most widely used types of cooling tower fill.
Its main advantages include:
High surface area
Good heat-transfer efficiency
Lightweight construction
Relatively low material cost
Modular installation
PVC film fill is often suitable for conventional HVAC and industrial cooling applications when the water temperature and chemistry are within the material's operating limits.
Polypropylene (PP) film fill is another option for demanding cooling tower applications.
Potential advantages include:
Good chemical resistance
Higher temperature capability in appropriate designs
Lightweight construction
Good durability
PP can be particularly attractive when operating conditions are unsuitable for standard PVC.
Splash fill breaks water into droplets as the water moves through a series of splash bars or grids.
It can be advantageous in applications where water contains significant suspended solids or where fouling is a major concern.
Potential applications include:
Industrial process cooling
Dirty-water applications
Wastewater-related systems
Heavy industrial facilities
Cooling tower fill is continuously exposed to water, air, chemicals, biological growth, and mechanical forces.
Over time, several problems can develop.
Hard-water minerals can form deposits on fill surfaces and restrict water and airflow.
Algae, bacteria, and other biological growth can accumulate on fill surfaces.
Fill sheets can break or deform because of:
Excessive temperature
Impact
Improper maintenance
Installation problems
Aging
Incorrect water treatment or chemical exposure can gradually damage the fill material.
Blocked passages increase resistance to airflow and can reduce tower capacity.
When these conditions become severe, replacing the fill may be more economical than repeated cleaning.
Choosing replacement fill should start with technical information about the existing tower.
Record:
Manufacturer
Tower model
Serial number
Construction date if available
This information can help the supplier identify the original configuration.
Important dimensions include:
Fill length
Fill width
Fill height
Module size
Sheet thickness
Flute height
Flute angle
Number of modules
Accurate measurements help prevent installation problems.
Water loading directly affects fill performance.
Provide the supplier with the actual or design:
Water flow rate in m³/h
This allows the supplier to evaluate whether the proposed fill can operate correctly.
Record:
Hot-water temperature
Cold-water temperature
Maximum operating temperature
The fill material must be suitable for the actual process conditions.
Water quality is especially important when selecting film fill.
Check:
Total suspended solids
Hardness
pH
Biological activity
Oil contamination
Corrosion products
Chemical treatment
If water contains high levels of solids, a fill with larger passages or a splash-fill configuration may be more appropriate.
When requesting a quotation from a supplier, use a technical specification similar to the following:
| Specification | Recommended Information |
|---|---|
| Cooling tower brand | Marley / SPX |
| Tower model | Model number |
| Tower configuration | Crossflow / Counterflow |
| Fill type | Film / Splash |
| Material | PVC / PP |
| Fill dimensions | L × W × H |
| Sheet thickness | mm |
| Flute height | mm |
| Fill volume | m³ |
| Number of modules | pcs |
| Water flow | m³/h |
| Airflow | m³/h |
| Hot-water temperature | °C |
| Cold-water temperature | °C |
| Water quality | Clean / moderate / high solids |
| Quantity | Required modules |
The more complete the technical information, the easier it is for a supplier to provide an accurate quotation.
Marley cooling towers can use different airflow configurations, and replacement fill should be designed accordingly.
In a crossflow tower, air generally moves horizontally across the falling water.
Crossflow fill designs must provide suitable:
Water distribution
Air passages
Wetting characteristics
Structural support
In a counterflow tower, air moves upward while water moves downward.
Counterflow fill generally requires a different geometry optimized for vertical countercurrent airflow.
Therefore, buyers should never assume that a fill designed for one tower configuration can automatically replace fill in another.
The price of Marley cooling tower fill replacement varies according to the project.
Important factors include:
Fill material
Fill volume
Module dimensions
Customization
Order quantity
Transportation
Import costs
Installation
Existing fill removal
Disposal
Tower cleaning
For Indonesian industrial projects, buyers should compare total project cost rather than simply the price per cubic meter.
A low-cost fill that requires extensive modification during installation can ultimately cost more than a properly engineered replacement.
Both approaches have advantages.
| Factor | OEM Marley | Aftermarket Marley-Compatible |
|---|---|---|
| Original equipment compatibility | Very high | Depends on supplier |
| Engineering support | OEM | Supplier dependent |
| Customization | Model dependent | Often flexible |
| Price | Usually higher | Often competitive |
| Older tower support | Model dependent | Often flexible |
| Custom dimensions | Limited by product range | Often available |
| Documentation | Strong | Supplier dependent |
| International sourcing | Available | Available |
For critical process cooling applications, technical validation should always come before price comparison.
A properly selected replacement can provide several benefits.
Clean and properly designed fill provides effective water-air contact.
Damaged or heavily fouled fill can limit tower capacity. Replacement can restore the intended operating condition.
New fill can eliminate blocked passages caused by scale and debris.
Correctly installed fill works together with the tower's spray or distribution system.
New fill can reduce recurring problems caused by deteriorated or collapsed media.
Indonesia's warm and humid climate can contribute to biological growth and water-quality-related fouling.
A preventive maintenance program should include:
Regular visual fill inspection
Water treatment monitoring
Scale control
Biological control
Nozzle inspection
Water distribution inspection
Drift eliminator inspection
Fan inspection
Basin cleaning
Debris removal
Operators should also monitor cooling tower performance.
Important parameters include:
Entering water temperature
Leaving water temperature
Ambient wet-bulb temperature
Water flow
Fan airflow
Fan power
Cooling tower approach
A gradual increase in approach temperature can indicate deterioration in cooling performance.
Replacement fill can be required in many Indonesian industries.
Cooling towers reject waste heat from condenser and auxiliary cooling systems. Reliable fill performance is essential for continuous operation.
Petrochemical facilities can operate large cooling-water systems under demanding conditions.
Chemical plants may require fill materials with suitable chemical resistance.
Indonesia's large palm oil industry uses process cooling in various stages of production.
Industrial processes can generate substantial heat loads, requiring reliable cooling-water systems.
Factories may use cooling towers for compressors, furnaces, injection molding, HVAC systems, and process equipment.
Large buildings, hotels, shopping centers, hospitals, and industrial complexes can use cooling towers for chilled-water and condenser-water systems.
A straightforward purchasing process can reduce the risk of ordering incorrect fill.
Record the Marley model and serial number.
Take clear photographs of:
Fill blocks
Fill supports
Water distribution
Nozzles
Tower interior
Record all relevant dimensions.
Include water flow, temperatures, water quality, and cooling duty.
Request drawings or specifications showing how the proposed replacement matches the existing tower.
Compare:
Material
Technical performance
Price
Lead time
Warranty
Shipping
Installation support
Before shipment, verify that the fill dimensions and support arrangement match the tower.
Indonesian customers can consider SPX Cooling Technologies/Marley OEM channels, international cooling tower fill manufacturers, aftermarket suppliers such as CoolingTowerPart.com, and local Indonesian cooling tower maintenance companies.
Yes. An aftermarket replacement can be appropriate when the fill geometry, material, thermal performance, water loading, airflow, and installation requirements are properly matched.
Common cooling tower fill materials include PVC and PP. Splash-fill systems may use different plastic configurations. The appropriate material depends on operating temperature, water chemistry, and application.
Common warning signs include severe scaling, blocked channels, broken sheets, collapsed modules, excessive biological growth, increased cooling-water temperature, and declining tower performance.
PVC film fill can be suitable for many Indonesian cooling tower applications, provided the operating temperature, water chemistry, and fouling conditions are compatible with the selected fill.
Film fill generally provides high heat-transfer surface area and compact installation, while splash fill can be advantageous for water with higher suspended solids or significant fouling potential.
Costs depend on fill volume, material, dimensions, customization, shipping, installation, removal, and tower cleaning. Requesting quotations based on complete technical specifications provides a more meaningful comparison.
Yes. If the fill is structurally sound, cleaning may restore performance. Severely damaged, brittle, deformed, or permanently blocked fill should generally be replaced.
Selecting the right Marley cooling tower fill replacement supplier in Indonesia is an important decision for maintaining cooling capacity and reliable industrial operation.
The best sourcing strategy depends on the individual project. SPX Cooling Technologies/Marley is the natural choice for customers who require OEM components and manufacturer-specific support. Aftermarket suppliers and specialized fill manufacturers can provide competitive alternatives, especially for older towers, customized dimensions, and large replacement projects. Local Indonesian cooling tower service companies can add value when inspection, removal, installation, and commissioning are required.
Before purchasing, confirm the Marley tower model, fill dimensions, tower configuration, material, water flow, operating temperature, water quality, and required cooling performance.
The cheapest replacement fill is not necessarily the best choice. A properly engineered fill that fits correctly and performs under the plant's actual operating conditions can provide better long-term value, lower maintenance requirements, and more reliable cooling performance.
For Indonesian industrial facilities, a careful comparison of OEM Marley fill, Marley-compatible aftermarket fill, and locally supported replacement solutions is the best way to achieve a reliable and cost-effective cooling tower refurbishment.
