The cooling tower fill is the core component for achieving full contact between water and gas and improving heat transfer efficiency. Its operating state directly affects the cooling effect and energy consumption level. During long-term operation, the fill is prone to the following problems:
Due to long-term exposure to high temperature, high humidity, and chemical media environments, filler materials such as PVC and PP will gradually age, exhibiting brittleness, cracking, and even fracture.
Calcium and magnesium ions, suspended solids, and microorganisms in circulating water are prone to form scale or biofilm on the surface of the fill, leading to increased ventilation resistance and decreased heat transfer efficiency.
Poor support structure or improper installation can cause local collapse of the filling material, resulting in airflow short circuits and seriously affecting cooling performance.
 |  |
Before implementing maintenance, a systematic evaluation should be conducted to avoid blind replacement or excessive repair.
Determine the trend of changes in fill performance based on parameters such as inlet and outlet water temperature difference, fan power, and circulating water flow rate.
Is there severe scaling on the surface of the fill material
Is there an obvious collapse area
Is the bracket corroded or deformed
Is the sprinkler system uniform
Partial damage → Partial replacement
Large scale aging → overall replacement
Mild scaling → Cleaning and repairing
high-pressure water flushing
Suitable for removing loose scale and impurities, simple operation, but pressure control is required to avoid damaging the fill.
Manual disassembly and cleaning
For severely blocked areas, they can be disassembled and cleaned piece by piece for a more thorough effect.
Acid washing and descaling
Dissolve carbonate scale using weak acids such as citric acid and dilute hydrochloric acid.
Notes:
Control concentration to prevent corrosion of fillers
After cleaning, it must be neutralized
Prevent pollution to the environment

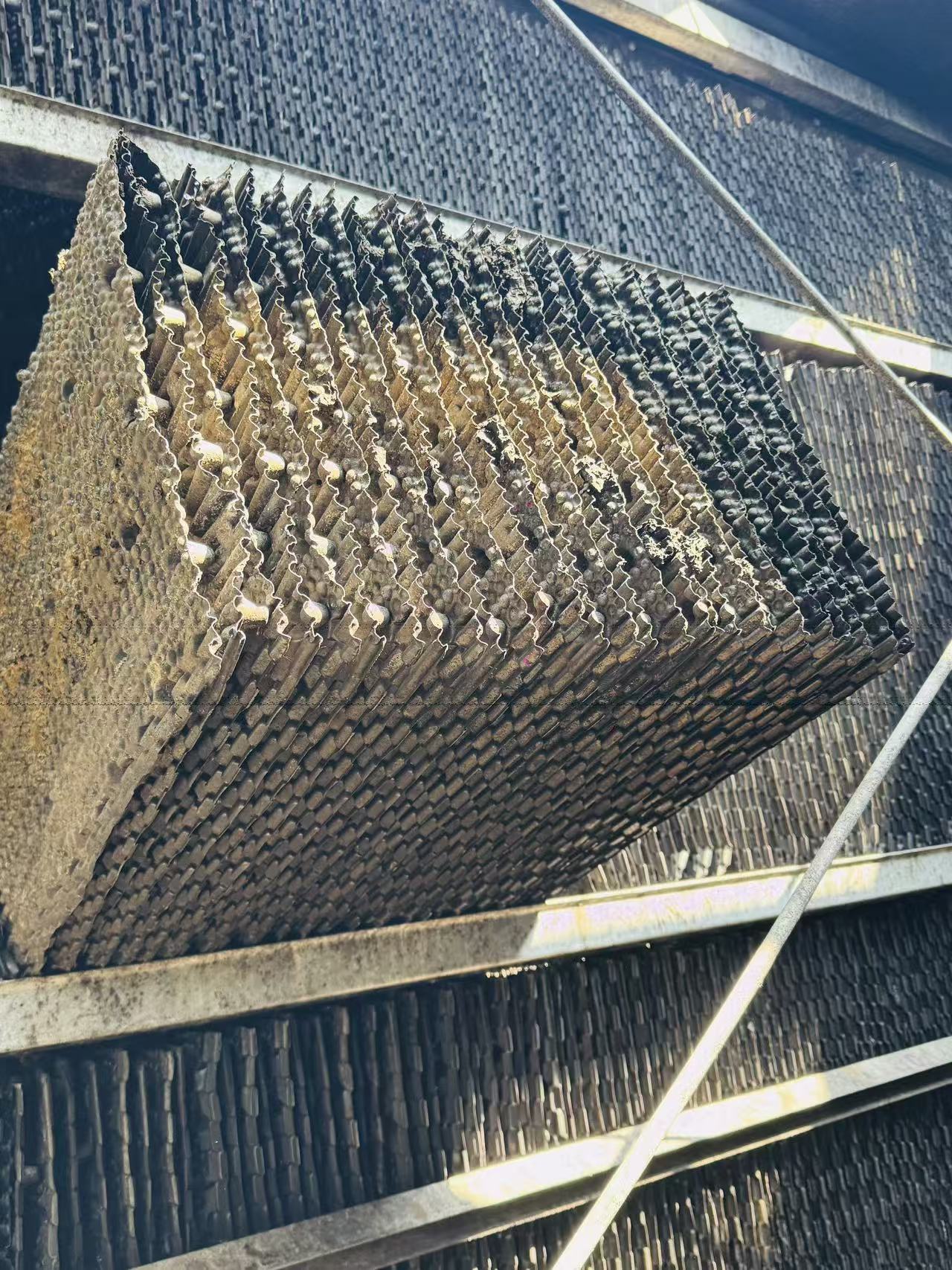

Fill replacement steps
Dismantle damaged filling materials
Check the supporting structure
Repay according to specifications
Ensure that the spacing and angle are consistent
Bracket reinforcement
Use anti-corrosion materials (such as fiberglass or galvanized steel) to reinforce the support and extend its service life.
Adopting a modular structure, it can be quickly disassembled and assembled, significantly reducing maintenance time and improving efficiency.
The addition of antibacterial coating on the surface of the new filler can effectively inhibit the formation of biofilm and reduce cleaning frequency.
Real time monitoring of fill operation status and early warning of faults can be achieved through temperature sensors and pressure difference monitoring systems.
Construction after shutdown and power outage
Wear safety protective equipment for high-altitude operations
Prevent slipping and falling
Chemical cleaning waste liquid needs to be treated in a standardized manner
Avoid contaminating the circulating water system
Promote green cleaning agents
Regularly check the uniformity of spraying
Monitor water quality indicators
Check the filling status every 6-12 months
Replace every 2-5 years depending on the situation
Modern cooling tower management is shifting from passive maintenance to proactive prevention. Through scientific monitoring, material upgrading, and standardized maintenance, the service life of fillers can be significantly extended and operating costs can be reduced.
Fill maintenance is not only equipment maintenance work, but also a key link in improving system energy efficiency and reliability. Only by combining technology with management can we achieve long-term stable and efficient operation of cooling towers.
