Key Characteristics of Marley Cooling Tower Fan Motor

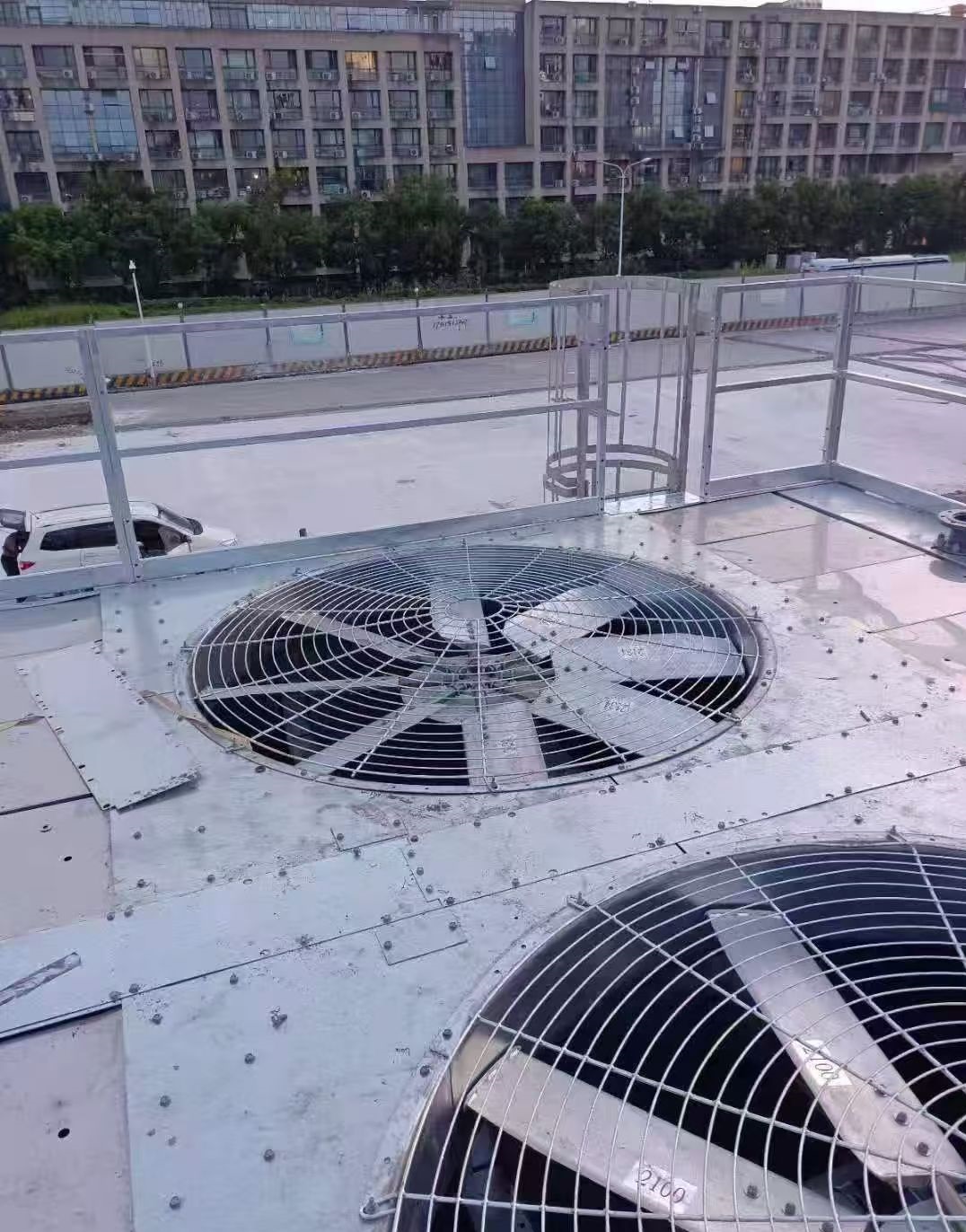

A Marley cooling tower fan motor is a cooling-tower-duty electric motor designed specifically to drive Marley axial fans in induced-draft cooling towers. These motors are engineered for outdoor, wet, and corrosive environments and differ from standard industrial motors.

Key Characteristics of Marley Cooling Tower Fan Motors

1. Motor Type

* 3-phase squirrel-cage induction motor

* Designed for continuous duty (S1)

2. Mounting & Orientation

* Vertical shaft motors (most common)

 * Mounted on top of the fan cylinder

 * Equipped with heavy-duty thrust bearings

* Horizontal motors

 * Used with belt or gearbox drives on smaller towers

3. Enclosure & Protection

Item	Marley Requirement (Typical)
Enclosure	TEFC or TENV
IP Rating	IP55 minimum (IP56/IP66 for harsh sites)
Insulation	Class F (Class H for VFD)
Service Factor	≥ 1.15
Ambient Rating	40 °C standard, 50 °C preferred

4. Electrical Ratings (Typical)

Parameter	Value
Power Range	5 – 300 HP
Voltage	460 V (USA), 380–415 V (International)
Frequency	60 Hz / 50 Hz
Speed	720 / 900 / 960 / 1450 / 1750 rpm
Efficiency	NEMA Premium / IE3

5. Corrosion Protection (Very Important)

* Epoxy-coated frame

* Stainless steel shaft

* Moisture-resistant winding varnish

* Sealed bearings

* Stainless or coated hardware

Common Marley Cooling Tower Fan Motor Brands

Marley typically supplies or approves motors from:

* Marathon

* Baldor

* ABB

* WEG

* Siemens

* TECO

(Exact brand depends on region and tower model.)

Typical Marley Fan Motor Example

> Marley Induced Draft Tower Fan Motor

> 60 HP, 460 V, 60 Hz

> 1750 rpm, TEFC, IP55

> Vertical shaft, thrust bearing

> Class F insulation, SF 1.15

> Outdoor, cooling-tower duty

> Epoxy-coated housing

Replacement Motor Selection – Important Checks

When replacing a Marley fan motor, always verify:

1. Exact HP & RPM

2. Vertical thrust capacity

3. Shaft diameter & length

4. Mounting flange & bolt pattern

5. Rotation direction

6. VFD compatibility (if used)

7. Fan blade pitch setting

⚠️ Using a standard motor without thrust bearing can cause early failure.

Common Issues with Marley Fan Motors

* Bearing failure due to moisture

* Corrosion at motor base

* Overloading from incorrect blade pitch

* VFD overheating without inverter-duty insulation

Maintenance Tips

✔ Annual insulation resistance test

✔ Re-grease bearings per OEM schedule

✔ Check vibration & alignment

✔ Keep motor mount well coated

✔ Inspect fan hub & blades regularly
