How To Choose Cooling Tower Pump Type

Choosing the right cooling tower pump type is critical for reliable operation, energy efficiency, and maintenance.

Step 1: Identify the Cooling Tower Pump Type Application in the Cooling Tower System

Cooling tower systems usually use two or three different pump types:

 1️⃣ Circulating / Condenser Cooling Tower Water Pump

Moves water between cooling tower and heat exchanger/chiller.

 2️⃣ Make-up Cooling Tower Water Pump (if no city pressure)

Supplies fresh water to compensate for evaporation, drift, and blowdown.

3️⃣ Basin / Sump Transfer Cooling tower Water Pump (optional)

Used for side-stream filtration or remote sumps.

Pump selection mainly focuses on the circulating (condenser) water pump.

Step 2: Choose Cooling Tower Pump Type by System Head & Flow

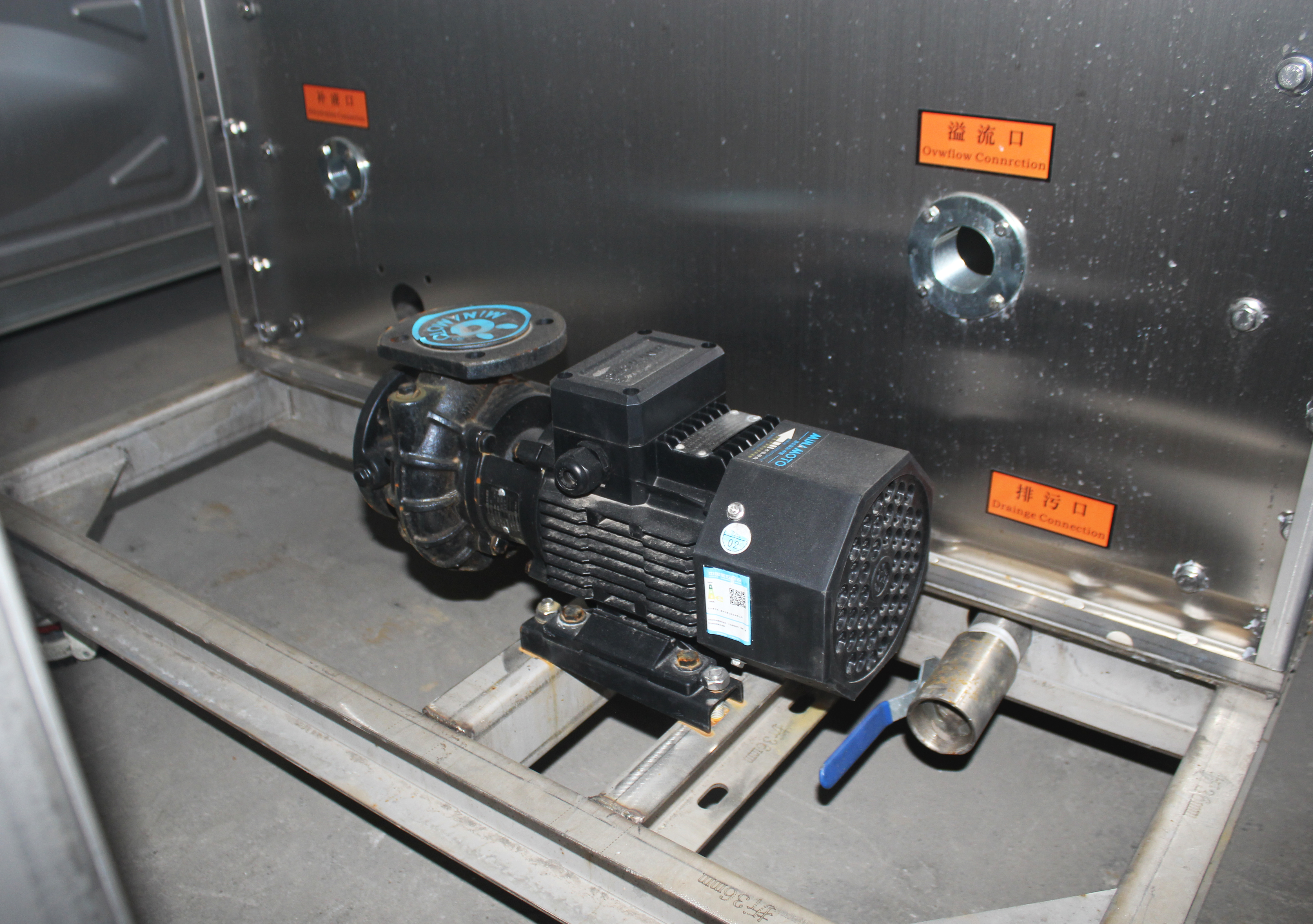

A. End Suction Centrifugal Pump (Most Common)

Best when:

* Low to medium head

* Large flow rate

* Simple piping layout

Advantages

* Lowest cost

* Easy maintenance

* High efficiency

Used in

* HVAC cooling towers

* Small to medium industrial towers

B. Split Case Pump (Horizontal or Vertical)

Best when:

* Very large flow

* Low to medium head

* Continuous operation

Advantages

* High efficiency (up to 90%)

* Excellent reliability

* Handles large pipe sizes

Used in

* District cooling

* Power plants

* Large industrial cooling towers

C. Vertical Turbine Pump

Best when:

* Deep basin or remote sump

* Limited floor space

* Need high NPSH margin

Advantages

* No priming required

* Good cavitation resistance

* Small footprint

Used in

* Induced-draft towers

* Large concrete basins

D. Inline (Vertical) Centrifugal Pump

Best when:

* Compact mechanical room

* Smaller systems

Advantages

* Space-saving

* Simple alignment

Used in

* Commercial HVAC cooling towers

Step 3: Check Hydraulic Requirements (Critical) When Choose Cooling Tower Pump Type

 1️⃣ Flow Rate (Q)

Q = Cooling load (kW)/(4.186*△_T)

Typical cooling tower ΔT:

* HVAC: 5–6°C (9–10°F)

* Industrial: 8–12°C

 2️⃣ Total Dynamic Head (TDH)

Include:

* Static head

* Pipe friction losses

* Cooling tower fill & spray loss

* Heat exchanger loss

* Safety margin (5–10%)

⚠️ Cooling towers usually have low static head but high flow.

3️⃣ NPSH Available (Very Important)

* Cooling tower basins often have low water level

* Ensure:

                                    NPSHa > NPSHr + 0.6~1.0 m

Step 4: Consider Water Quality & Materials When Choose Cooling Tower Pump Type

Water Condition	Recommended Pump Material
Clean HVAC water	Cast iron
Mild corrosion	Ductile iron
High chloride	Stainless steel
Dirty / solids	Open impeller
Seawater	Bronze / Duplex SS

Step 5: Motor & Drive Selection

* Motor type: TEFC induction motor

* Speed:

 * 1450 rpm (50 Hz) / 1750 rpm (60 Hz) → preferred

 * Avoid very high speed for cavitation control

* Control:

 * VFD recommended for energy saving

* Protection: IP55 or higher

Step 6: Typical Selection Summary Table

System Size	Recommended Pump
Small HVAC tower	Inline or End suction
Medium HVAC tower	End suction
Large industrial tower	Horizontal split case
Deep basin / sump	Vertical turbine
Space-limited plant	Vertical inline

Common Mistakes to Avoid ❌

* Oversizing pump for safety

* Ignoring NPSH

* Using closed impeller with dirty water

* Selecting high-speed pumps for large flow

* No allowance for fouling

Quick Rule of Thumb

* HVAC cooling tower → End suction or split case

* Large industrial / power plant → Split case or vertical turbine

* Deep basin → Vertical turbine pump
