Product Description

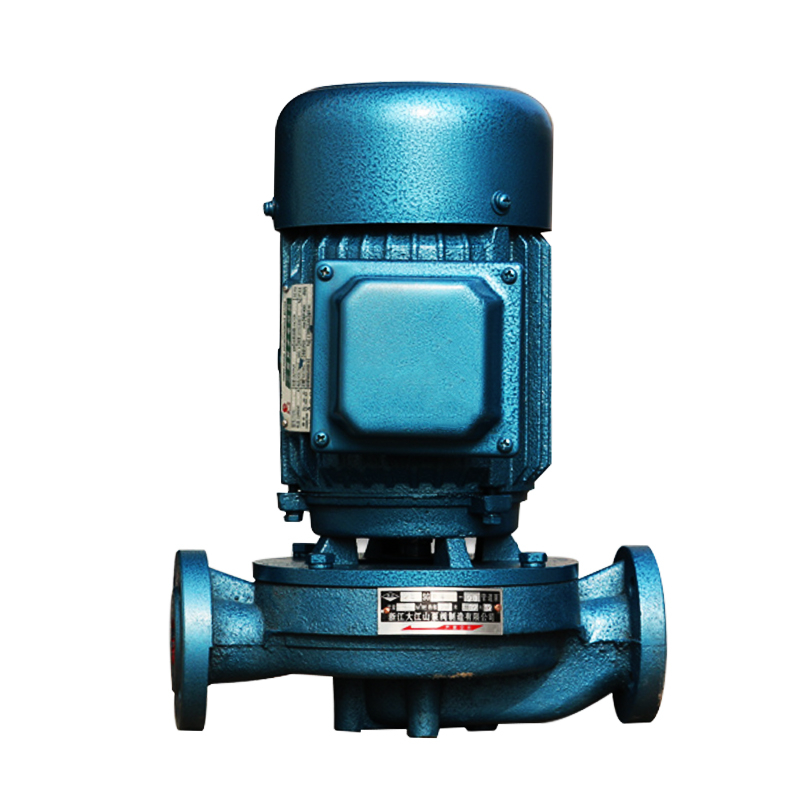

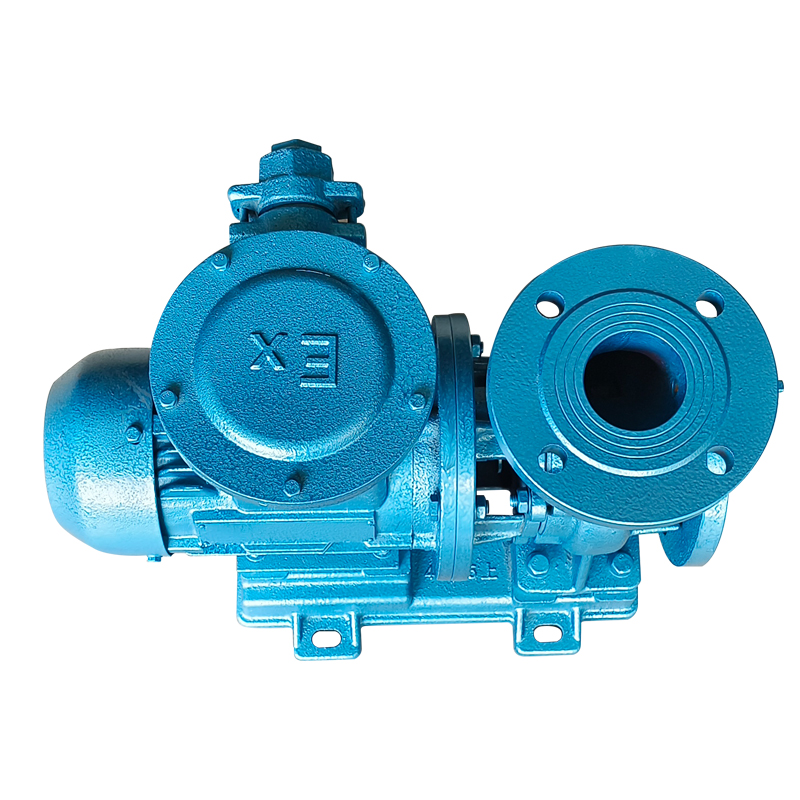

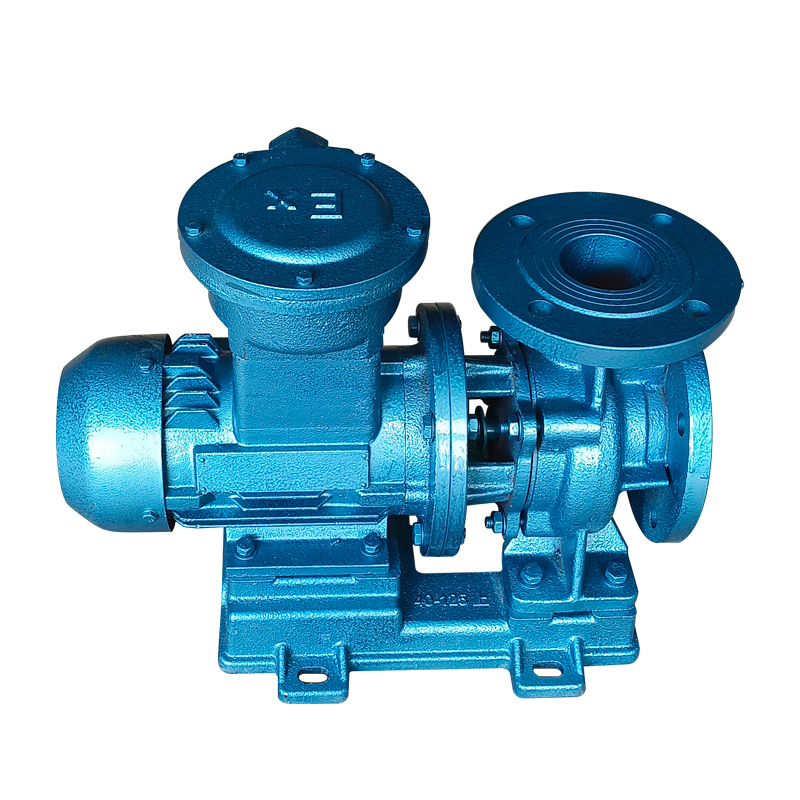

YLGZ pump is a single-stage single suction direct coupled centrifugal pump, especially suitable for matching with evaporative condensers. It can also be used in certain high flow, low range applications, such as industrial and urban water supply and drainage, garden sprinkler irrigation, HVAC refrigeration cycle, bathroom and other boosting and equipment matching. This type of pump is mainly used for suctioning diluted, clean, non corrosive clean water and liquids with physical and chemical properties similar to water without solid particles or fibers.
1. Adopting a direct connection structure, the pump is directly driven by an electric motor, reducing the number of spare parts. The vortex chamber, inlet flange, and outlet flange are cast as a whole.
2. The impeller adopts hydraulic and dynamic balance, cantilever installation, and the overcurrent part adopts a multi-channel variable line design, which has high water absorption performance and efficiency, and strong anti cavitation ability.
3. Adopting high-quality mechanical seals and imported NSK bearings.
4. The electric motor is equipped with a fully enclosed fan cooled squirrel cage direct coupled horizontal motor.
5. This type of pump has the characteristics of simple structure, reliable performance, small size, light weight, low noise, good anti cavitation performance, low power consumption, and easy use and maintenance.
NO | Model | Water Flow | lift | speed | power | |
(m3/h) | (l/s) | (m) | (r/min) | |||
1 | YLGZ31-50 | 16 | 4.44 | 7.5 | 2900 | 0.75 |
20 | 5.56 | 7 | ||||
22 | 6.11 | 6.5 | ||||
2 | YLGZ31-100 | 35 | 9.72 | 4.5 | 1450 | 0.75 |
43.2 | 12 | 4 | ||||
50 | 13.89 | 3.5 | ||||
3 | YLGZ31.5-100 | 38 | 10.56 | 5.5 | 1450 | 1.1 |
45 | 12.5 | 5 | ||||
60 | 16.67 | 3.8 | ||||
4 | YLGZ32-100 | 35 | 9.72 | 7 | 1450 | 1.5 |
50 | 13.89 | 6 | ||||
60 | 16.67 | 5.3 | ||||
5 | YLGZ33-100 | 45 | 12.5 | 8 | 1450 | 2.2 |
60 | 16.67 | 7 | ||||
70 | 19.44 | 6 | ||||
6 | YLGZ32-125 | 65 | 18.06 | 4.5 | 1450 | 1.5 |
80 | 22.22 | 4 | ||||
90 | 25 | 3.5 | ||||
7 | YLGZ33-125 | 90 | 25 | 5.2 | 1450 | 2.2 |
114 | 31.67 | 4.5 | ||||
130 | 36.11 | 4 | ||||
8 | YLGZ34-150 | 100 | 27.78 | 7 | 1450 | 3 |
130 | 36.11 | 6 | ||||
150 | 41.67 | 5 | ||||
9 | YLGZ35-150 | 112 | 31.11 | 7.5 | 1450 | 4 |
140 | 38.89 | 6.5 | ||||
170 | 47.22 | 6 | ||||
10 | YLGZ37-150 | 120 | 33.33 | 10 | 1450 | 5.5 |
160 | 44.44 | 9 | ||||
192 | 53.33 | 7.3 | ||||
11 | YLGZ310-150 | 200 | 55.56 | 8.5 | 1450 | 7.5 |
240 | 66.67 | 7.5 | ||||
270 | 75 | 7 |
1. The rotation direction of the pump should be clockwise from the drive end towards the pump;
2. Before the operation of the pump, it should be confirmed whether the rotation direction of the motor is correct and whether the pump rotates flexibly. The test time should be short to avoid dry grinding of the mechanical seal; Fully open the inlet gate valve and close the gate valve of the discharge pipeline;
3. Fill the pump with water or use a vacuum pump to draw water
4. Connect the power supply, gradually open the gate valve on the discharge pipeline when the pump reaches normal speed, and adjust the opening of the outlet gate valve to the desired working condition. Attention should be paid to adjusting the opening of the outlet gate valve and measuring the motor current of the pump to ensure that the motor operates within the rated current. Otherwise, it will cause the pump to operate at overload (i.e. high current operation) and cause the motor to burn out. The opening size of the outlet valve that is adjusted correctly is related to the working conditions of the pipeline.
1. Gradually close the gate valve on the discharge pipeline and cut off the power supply.
If the ambient temperature is below 0 ℃, the water inside the pump should be drained to prevent the pump body from freezing and cracking.
3. If the pump is not used for a long time, it should be disassembled, oiled, packaged, and reported.
1. The inlet pipeline must be filled with liquid, and the pump is prohibited from running for a long time in a cavitation state.
2. Regularly check the motor current value and ensure it does not exceed the rated current of the motor.
During driving and operation, it is necessary to pay attention to the instrument readings, bearing heating, shaft seal leakage, heating, vibration, and noise to ensure that they are normal. If any abnormal situations are found, they should be dealt with immediately.
3. The maximum bearing temperature shall not exceed 80 ℃, and the bearing temperature shall not exceed the ambient temperature by more than 40 ℃
![]() | ![]() |
Fault | Reason | Troubleshooting |
The pump does not produce water, and the pointers of the pressure gauge and vacuum gauge jump violently | a. Insufficient water injected into the pump b. Air leakage in the inlet pipe | a. Inject water into the pump again b. Block the leakage point |
The pump does not absorb water,but the vacuum gauge shows high vacuum | a. The bottom valve is not open or blocked b. The resistance of the suction pipe is too high c. The water absorption height is too high | a. Leveling or replacing the bottom valve b. Clean or replace the suction pipe c. Reduce water absorption height |
The pump is not producing water, and the pressure gauge shows pressure | a. The rotation direction of the pump shaft is incorrect b. The resistance of the outlet pipe is too high c. Impeller blockage d. Insufficient RPM | a. Correct the steering b. Check the length of the water pipe c. Clean the impeller d. Increase RPM |
Decreased pump flow or head | a. Impeller or pipeline blockage b. Severe impeller wear c. The rotational speed is lower than the specified value | a. Clean the impeller or pipeline b. Replace damaged parts c.Adjust to the specified number of revolutions |
The power consumption of the pump is too high | a. Wear of impeller and sealing ring b. Excessive traffic | a. Eliminate mechanical friction b. Turn down the outlet valve |
Abnormal sound inside the pump, unable to suction water | a. Excessive water absorption height b. Leakage of suction pipe c. Excessive flow leads to cavitation | a. Reduce the water absorption height b. Block the leaking area c. Adjust the outlet gate valve for use under specified operating conditions |
Pump vibration is severe | a. Pump cavitation occurs b. Unbalanced impeller c. Loose foundation bolts | a. Eliminate cavitation b. Impeller balancing c. Tighten the foundation bolts |
The bearing is overheated | Insufficient or excessive lubricating oil or deterioration | Check the motor bearings Clean the bearings and change the oil. |
Cooling tower pumps are one of the core equipment for maintaining the normal operation of cooling tower systems. By driving the circulation of cooling water, they enable heat exchange and have extensive and crucial applications in numerous fields.
Cooling tower pumps play a vital role in industrial production. In chemical enterprises, a large number of chemical reactions generate heat. If the heat is not dissipated in a timely manner, it may affect the reaction process and even lead to safety accidents. Cooling tower pumps transport high - temperature cooling water from production equipment to cooling towers. After heat dissipation and cooling, the low - temperature cooling water is sent back to the equipment, forming an efficient circulating cooling system. For example, in the cracking units of petrochemical plants, cooling tower pumps operate continuously and stably, ensuring that the units run at appropriate temperatures, thereby improving production efficiency and product quality. In the steel - making process, the large amount of heat generated by equipment such as blast furnaces and converters also relies on cooling tower pumps to circulate cooling water, preventing equipment damage due to overheating and ensuring the continuity of steel production.
In the field of commercial buildings, cooling tower pumps serve as the "power heart" of central air - conditioning systems. In large shopping malls, office buildings, and hotels, central air - conditioning systems need to continuously adjust indoor temperatures to meet people's comfort requirements. Cooling tower pumps lift the high - temperature cooling water that has absorbed indoor heat to the top of the cooling tower. Through methods such as spraying and air convection, the water is cooled, and then the cooled water is pumped back to the air - conditioning units, providing a cold source for indoor refrigeration. In addition, some commercial buildings are equipped with ice - storage systems. During low - power - consumption periods, cooling tower pumps work with refrigeration equipment to store cold energy, which is then released during peak periods, achieving off - peak power consumption and reducing operating costs.
Cooling tower pumps also play an important role in the energy industry. In thermal power plants, after steam drives turbines to generate electricity, it needs to be cooled and converted back into water for recycling. Cooling tower pumps transport the hot water cooled by high - temperature exhaust steam to the cooling tower for cooling, and then the cooled water returns to the boiler, forming a complete thermodynamic cycle system and improving energy utilization efficiency. In nuclear power plants, cooling tower pumps undertake the crucial task of cooling the reactor, ensuring the safe and stable operation of the reactor and preventing serious accidents such as nuclear leakage.
In data centers, the large amount of heat generated by the operation of numerous servers needs to be dissipated in a timely manner. Cooling tower pumps, in conjunction with precision air - conditioning systems, circulate cooling water to the heat exchangers of server cabinets, removing heat and maintaining the normal operating temperature of the servers, thus ensuring the stable operation of the data center. Moreover, in industries with strict requirements for production environment temperatures, such as food processing and pharmaceuticals, cooling tower pumps create suitable temperature conditions for production processes through stable water circulation cooling, ensuring product quality and production safety.
Cooling tower pumps, with their stable water circulation driving capabilities, play a key role in multiple fields such as industry, commerce, and energy. They are important basic equipment for ensuring the normal operation of equipment and the comfort and stability of the environment in various industries.
