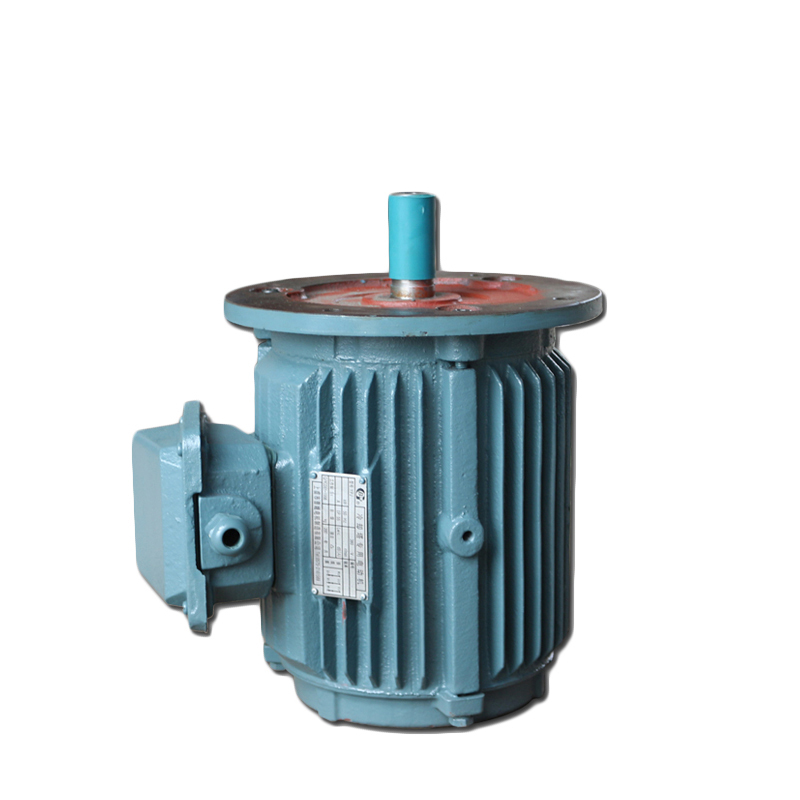

Cooling tower belt reducer motor is a mechanical device specially used for cooling tower fan drive. It converts the high speed of the motor into the low speed required by the cooling tower fan through the coordination of the motor, the decelerating device and the belt transmission system, so as to achieve efficient fan operation. The following is a detailed introduction to the cooling tower belt reducer motor:
Basic composition
1. Motor
Usually, three-phase asynchronous motors or high-efficiency motors are used, which have stable performance and long service life.
2. Speed reduction device
It is mainly composed of a reduction box (worm gear, helical gear or planetary gear, etc.) to reduce the speed and provide greater torque.
3. Belt drive system
Includes a pulley and a drive belt for transmitting the power output of the deceleration device to the cooling tower fan shaft.
Working principle
The motor provides power through rotation, reduces the speed and increases the torque through the decelerating device, and then transmits the power to the fan through the belt transmission system, thereby driving the fan blade to rotate, ensuring the air circulation in the cooling tower and improving the cooling efficiency.
advantage
1. Simple structure
The belt drive is easy to maintain and replace, and the overall structure is relatively simple.
2. Low cost
The belt drive solution is more economical than the direct drive method.
3. You're adaptable
The belt drive can adjust the speed by replacing the belt pulley to flexibly meet the operating needs of different cooling towers.

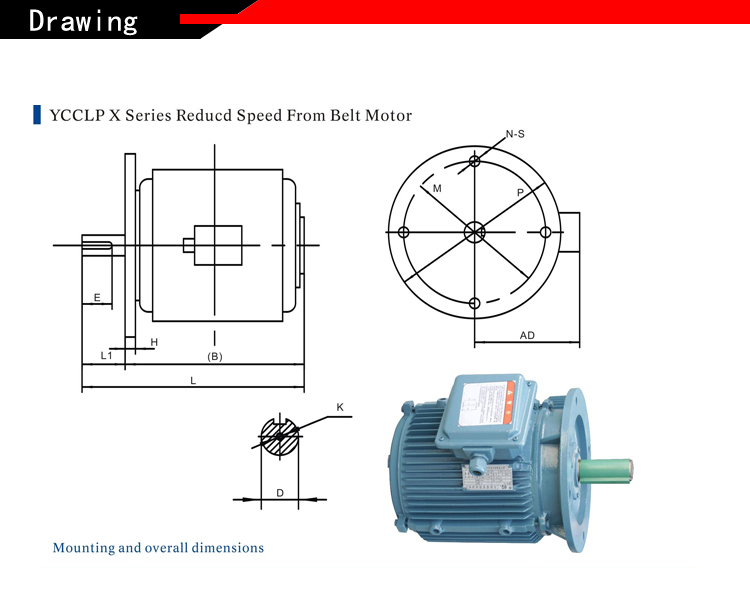

Size Measurement
| Type | Moumting dimensions | Overall simensions | |||||||||||||
| B | L1 | H | E | F | D | G | K | T | M | n-S | L | AC | AD | P | |
| 90S | 208 | 50 | 12 | 32 | 8 | φ24 | 20 | M8 | 30 | φ165 | 4-φ12 | 258 | φ175 | 160 | φ200 |
| 90L | 233 | 50 | 12 | 32 | 8 | φ24 | 20 | M8 | 30 | φ165 | 4-φ12 | 283 | φ175 | 160 | φ200 |
| 100 | 262 | 60 | 14 | 40 | 8 | φ28 | 24 | M8 | 30 | φ215 | 4-φ12 | 322 | φ205 | 190 | φ250 |
| 112 | 282 | 60 | 14 | 40 | 8 | Φ28 | 24 | M10 | 25 | φ215 | 4-φ25 | 342 | φ230 | 198 | φ250 |
| 132S | 316 | 80 | 18 | 56 | 10 | φ38 | 33 | M12 | 30 | φ265 | 4-φ25 | 396 | φ264 | 215 | φ300 |
| 132M | 354 | 80 | 18 | 56 | 10 | φ38 | 33 | M12 | 30 | φ265 | 4-φ25 | 434 | φ264 | 215 | φ300 |
| 160M | 426 | 110 | 20 | 85 | 12 | Φ42 | 37 | M16 | 40 | Φ300 | 4-φ16 | 536 | Φ325 | 255 | φ350 |
| 160L | 470 | 110 | 20 | 85 | 12 | φ42 | 37 | M16 | 40 | φ300 | 4-Φ16 | 580 | φ325 | 255 | φ350 |
| 180m | 478 | 110 | 18 | 80 | 14 | Φ48 | 42.5 | M16 | 40 | φ300 | 4-φ19 | 588 | Φ360 | 285 | φ350 |
| 180L | 516 | 110 | 18 | 80 | 14 | φ48 | 42.5 | M16 | 40 | φ300 | 4-φ19 | 626 | φ360 | 285 | φ350 |
Application
Industrial cooling tower
Plant cooling system
Cooling equipment in HVAC system
Packing
Packing:wooden case.
Delivery time:With in 10 days.
