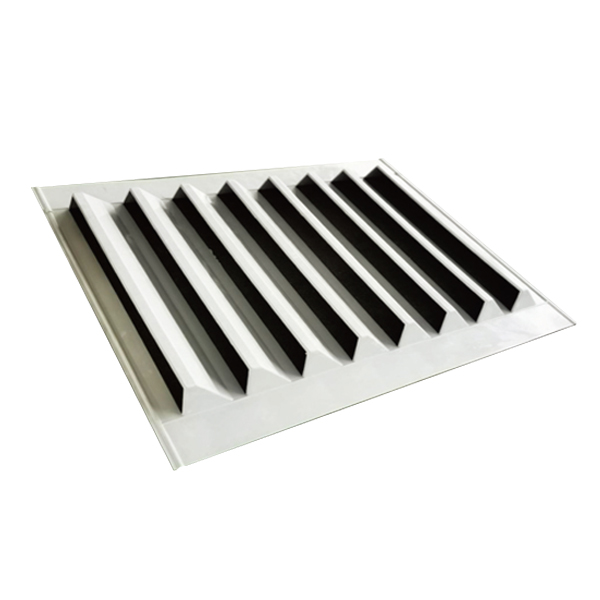

Product Description
Compression molding process, is the current advanced manufacturing processof FRP fan stacks, it uses impregnated film material as raw material, the product pressedby hydraulic press for power, first of all, a certain amount of molding material placedin the metal mold, and then in 150-170'c temperature and 1500-4000 tons of pressuremolding, the product size is accurate, the surface is smooth, and the product size isaccurate. lt can be formed once, the production efficiency is high, and the productquality is stable, suitable for mass production of various FRP products.
Specification

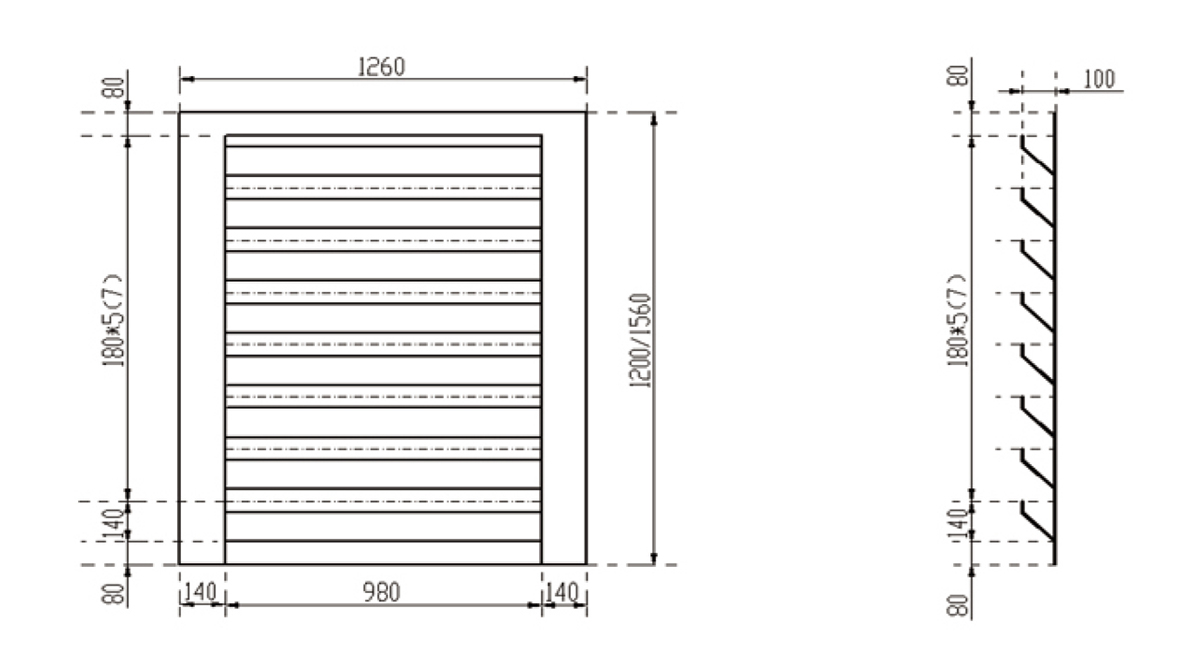

| No. | Model | Wave Height mm | Inner width mm | Overlap surface width mm | Total width mm | Thickness mm | Height |
| 1 | ABY-156 | 100 | 980 | 140 | From 1080-2260 | 2.5-3.0 | 1560 |
| 2 | ABY-120 | 100 | 980 | 140 | From 1080-2260 | 2.5-3.0 | 1200 |
Note: 1.Louver can be customized
2.Their height can be increased by overlapping and reduced by cutting
3.The width is widened by splicing
Features
This product is a standardized product with high production efficiency,facilitating fast, large-scale production,and automated production.
The products produced by the molding process have high dimensional accuracy, no need to cut the edges,no deformation, and very convenient installation.
The interal and external surfaces of the product are smooth and contain anti UV agents, which have strong weather resistance and do not require secondary modification.
The product has a reasonable structural design, high vibration resistance, andeffectively avoids vibration.
The product is high-temperature pressed,therefore the product has high density,standardized molding, and no defects.
Application
The application range is: Industrial water cooling,Air compressor, Aluminum profile processing, Steam turbine, Power generation, Tannery, Electric furnace, Freezing Series, Air conditioning cooling system
Shippment
Packing:Wooden pallet.
Delivery time:With in 10 days.
